Ceiling Sound Baffle Panels

sound proof industrial curtains

OVERVIEW

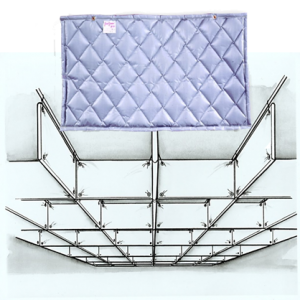

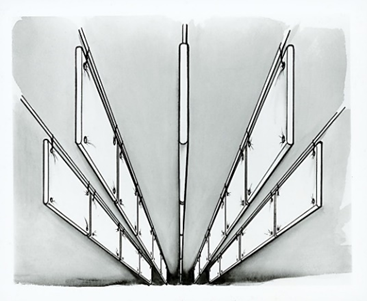

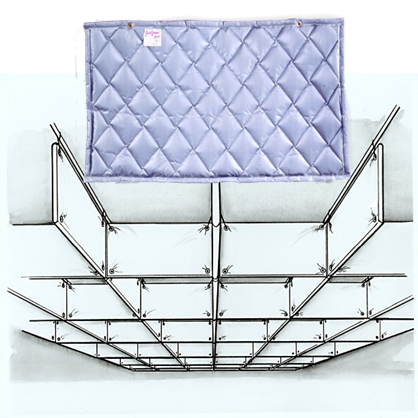

The ceiling sound panels are an ideal solution for absorbing reverberant noise in large areas or noisy sections of manufacturing facilities. When hung in the recommended configuration of one absorber per 8 to 10 sq/ft of floor work area, the baffles can reduce the noise levels 8 to 10 dBA. They should be hung in parallel running rows or in an egg crate configuration as shown on the left.

Rapid Quote

line_dotted2

sound curtains

Ideal Applications

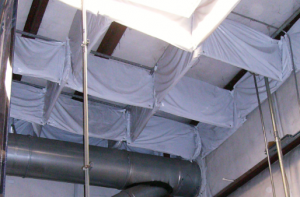

Baffles are hung vertically from the ceiling to absorb and dissipate reflecting noises. Any large open area with loud noises could benefit from these baffles.

  • Warehouses
  • Industrial facilities
  • Manufacturing plants
  • Gymnasiums
  • Large auditoriums
  • Any large open space where reflecting noise is an issue

sound absorbing curtains

Considerations

  • Commonly used in conjunction with the panel sound barrier panels to further reduce noise pollution
  • Hanging the ceiling baffles is typically done using zip ties or tek screws into the existing structure
  • Easy to take down and store when not needed
  • Easy to move to new locations when application changes
  • Modular design allows for many different layouts
  • Easy to fit around obstructions due to flexible design

Ceiling Sound Baffle Styles

industrial noise reduction curtains

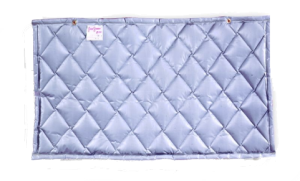

Model: Poly Ceiling Baffles
Thickness: 1.5″
Color: Off white
Grommets: Located in each corner
Size: 4’w x 2’h
DBA Reduction: Estimated up to 7 DBA
Fire Rating: Meets Federal MVSS #302 flame-retardant tests, ASTM E84 Class I
Note: The Poly Covered Fiberglass Baffles are the most economical baffles. They are fabricated with a high density fiberglass core sealed in a polyurethane cover.
Spec Sheet: View PDF Spec Sheet
Price: $

Rapid Quote

mass loaded vinyl curtain

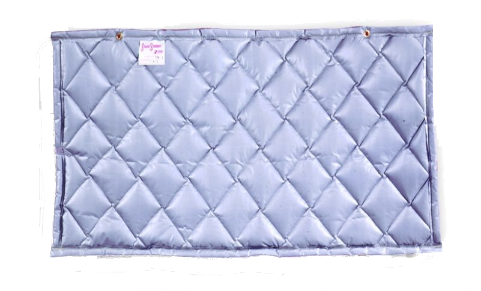

Model: Quilted Fiberglass Ceiling Baffles
Thickness: 2″
Color: Gray
Grommets: Grommets at top 8″ in from corners
Size: 4’w x 2’h
DBA Reduction: Estimated up to 10 DBA
Fire Rating: Meets Federal MVSS #302 flame-retardant tests, ASTM E84 Class I
Note: The quilted fiberglass baffles will reduce the greatest amount of noise.
Spec Sheet: View PDF Spec Sheet
Price: $$

Rapid Quote

Decibel Ratings

sound-curtain-decible-ratings
