Sound Panel Bulk Rolls

Sound Panel Bulk Rolls

OVERVIEW

Bulk Roll Noise Reducing Curtains are 48″ wide and are stocked for quick shipping. These are ideal for the do-it yourself type person. The panels are available with a sewn shut edges for a clean finish, or unbound edges for when they are used in a non visible location. Deploy them for free-hanging dividers, or inside frames or walls for noise reduction. Can also be used outdoors when panels are treated. We apply a silicone to the panels to weatherize them.

Rapid Quote

line_dotted2

Noise Blocking Bulk Roll Styles

Common Features

Color:
Material:
Grommets:
Resistant To:
Fire Rating:
Grey or white
Fiberglass batting with vinyl coated fiberglass skin
No
Oils, Grease and Mildew
Meets Federal MVSS #302 flame-retardant tests, ASTM E84 Class I

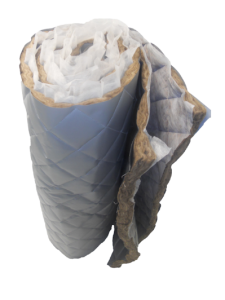

acoustic curtains industrial
Model: CDS-122
Useable Side: One Side
Thickness: 1″
Bound Edges: Edges are not sewn shut
Roll size: 4’w x 50’l – (covers 200 sq/ft) @ 50lbs per roll
DBA Reduction: Estimated up to 10 DBA
Note: Moderate sound absorber. Ideal for onsite field cutting. These panels cannot be hung in the middle of a room. This material can only be used flat against a surface; walls, machinery, etc. Same as the hemmed version below but with the edges left open for a reduced cost and for applications where you will need to cut them onsite.
Spec Sheet: View PDF Spec Sheet
Price: $

Rapid Quote

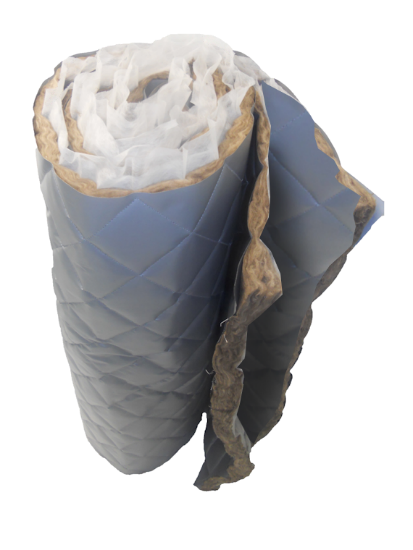

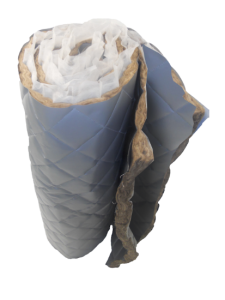

Sound Panel Bulk Rolls 2
Model: CDS-123
Useable Side: Both Sides
Thickness: 1″
Bound Edges: Edges are not sewn shut
Roll size: 4’w x 50’l – (covers 200 sq/ft) @ 50lbs per roll
DBA Reduction: Estimated up to 11 DBA
Note: Moderate sound absorber. Ideal for onsite field cutting. Same as the CDS-122 above but with 2 usable sides. The Vinyl skin is on both sides which allows it to be hung in the middle of the room.
Spec Sheet: View PDF Spec Sheet
Price: $

Rapid Quote

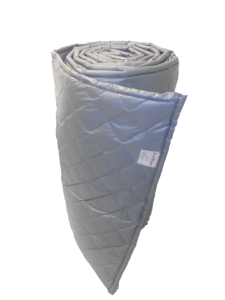

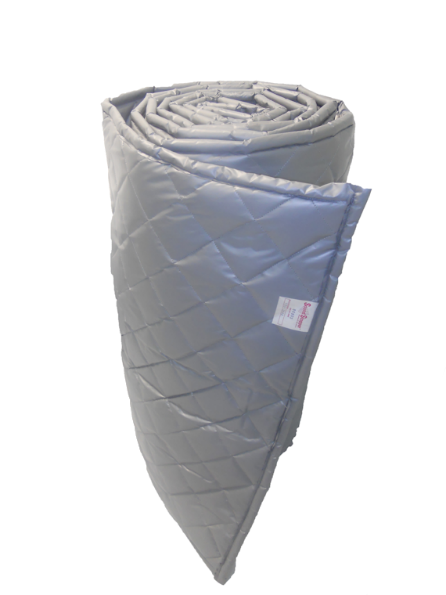

industrial sound curtains
Model: CDS-124
Useable Side: Both Sides
Thickness: 2″
Bound Edges: Long sides only
Roll size: 4’w x 25’l – (covers 100 sq/ft) @ 50 lbs per roll
DBA Reduction: Estimated up to 21 DBA
Note: An ideal sound absorber. Two layers of 1” thick, 2 lb./cu. ft. density fiberglass batting, quilted between 2 layers of vinyl coated fiberglass facing.
Spec Sheet: View PDF Spec Sheet
Price: $$

Rapid Quote

industrial sound curtains
Model: CDS-125
Useable Side: Both Sides
Thickness: 2″
Bound Edges: Long sides only
Roll size: 4’w x 25’l – (covers 100 sq/ft) @ 150 lbs per roll
DBA Reduction: Estimated up to 29 DBA
Note: An ideal sound absorber and barrier. Best in extremely noisy areas. Same as the CDS-124 but with an added 1 lb./sq. ft. mass loaded vinyl barrier sheet added in the middle. That makes this curtain an ideal sound absorber and blocker.
Spec Sheet: View PDF Spec Sheet
Price: $$$

Rapid Quote

Decibel Ratings

sound-curtain-decible-ratings
