Outdoor Hanger Curtains
AKON understands the requirements of curtains used for aircraft hangars. This aircraft hangar curtain covers large openings and can be operated quickly with simple drop cords. The high quality Vinyl material used to fabricate the aircraft hangar partitions ensure they provide protection from the elements. They also protect the inside of the aircraft hangar and at a fraction of the cost of operable fixed doors.

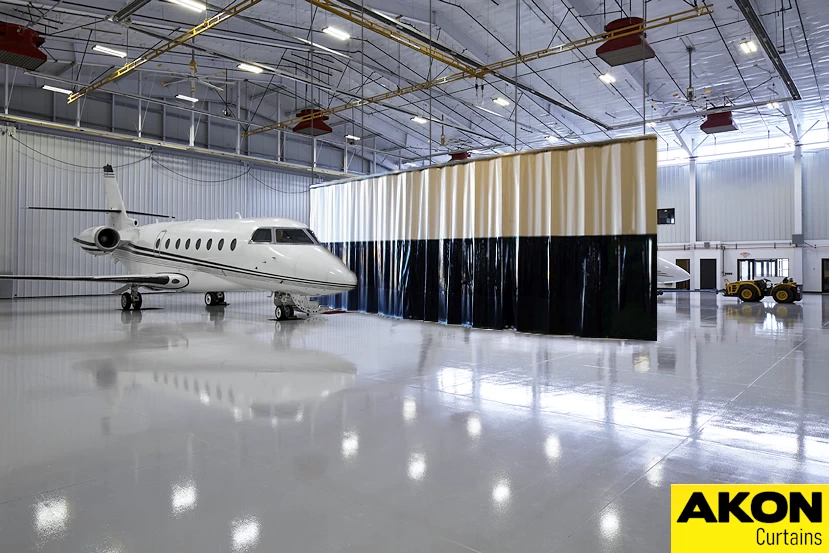

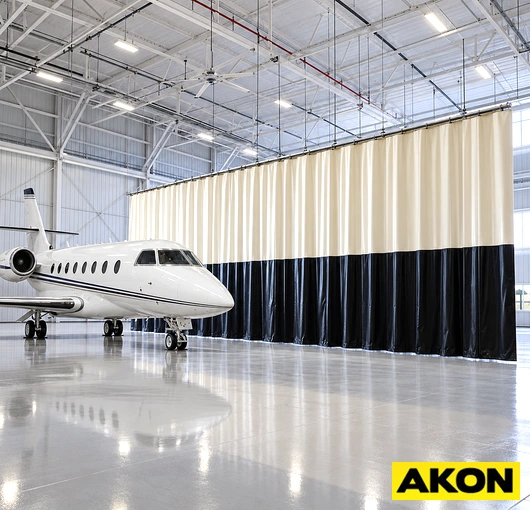

Indoor Hanger Curtains
Dividing space inside aircraft hangers using our aircraft hanger divider curtains is a quick way to make work zones or privacy areas. These very large hanger curtains are made in any size up to 100' tall and come in many different colors to match your company colors. They can be static in position or roll side to side for complete access when using our industrial curtain track.
Aircraft Hangar Containment
Custom Made Per Application
The curtains are completely custom made to fit any size and shape. There are also plenty of choices when it comes to curtain colors. AKON fulfills special orders such as custom printed curtains that are very useful for aircraft carriers in promoting their brand. The durable partitions can be removed in case of operational changes or if more space is needed in the hangar area due to a new fleet acquisition.
Benefits
- Avoid large expenditures from roll up and slide out rigid doors.
- Efficient temperature control saves on utility bills
- Special curtain material prevents dust and odor buildup
- Fast open and close time facilitate air transport operations
- Smoke and humidity level control
- Cheaper maintenance with high re-usability
Plenty of choices
- Select from a range of different curtain materials
- Many different colors available
- Choose the mounting style that best fits your needs
- Several accessories available to increase performance
- The curtains allow for integration of automatic operating controls (not provided by AKON)
- Order AKON curtains to cover any structural layout possible
Cost Savings
Businesses evolve all the time and the requirements can change in a very short span of time. AKON’s aircraft hangar curtains are easy to install, affordable to maintain, and provide faster operation than solid doors and partitions reducing aircraft operations time. The installation cost is also only a fraction of comparable roll-up doors and sliding doors.
Reinforced For Wind Stress
Webbing
- Heavy Duty mildew resistant webbing
- Runs the entire length from top to bottom
- Reinforces the super duty curtain
- Spaced every 4 feet for superior strength
Anchors
- Super duty anchor plates attaches to the webbing
- Straps go through the D-Rings for attaching
- Anchors into the cement for wind loads
- Can be driven over or counter sunk for heavy traffic
HD Rollers
- Quad steel rollers spaced every 4 feet
- Rated for 125 pounds of force each
- Bolted to the webbing for stress point relief
- Galvanized outdoor rated curtain track
Mesh (optional)
- Optional wind mesh panels for additional wind relief
- Optional back flap installed on back side of mesh
- Flap keeps the breeze out but allows stronger winds through
- If no mesh is needed curtain can all be solid
Keep the Weather Out
Unmatched Performance
So far on the market there are no hangar curtains competitively priced that are listed as outdoor super duty curtains for windy areas, though a lot claim this. These inferior curtains have grommets that will rip out as they are not properly reinforced with webbing. AKON super heavy duty aircraft hangar curtains are designed based on our experiences with how curtains have failed in the field from our years of experience. We have developed a wind blocking curtain that takes the stress off of the curtain material and puts it back on the hardware to relieve tearing and curtain failure.
Outdoor Curtain Strength
This super heavy duty outdoor curtain features an optional mesh section in the middle to allow some wind to blow through to reduce the stress on the curtain. The mesh also has an optional back flap to help control free-flowing breeze when it is not windy out.
We also triple stitch sew heavy duty webbing straps vertically every 5 feet the full length of the curtain from the roller hooks all the way down to the anchor plates. This takes the majority of the stress off of the curtain and places it on the hardware at the top and the bottom of the curtain. The quad steel wheel rollers are each rated for 125 pounds of force. Anchor plates at the bottom are bolted into your concrete and also have exceptional strength for wind loads.
Materials
- Hem can hold anywhere between 25-35 lbs per square inch
- The hardware can handle approx 75 lbs per foot of span
- 22 oz PVC coated fabric with Mesh Wind Panel
- Ideal for temperatures going as low as -22° F or -30° C
- Color options available
Frequently Asked Questions
Aircraft hangar curtains divide hangar spaces into smaller temperature-controlled zones for maintenance, storage and different operations. These heavy-duty curtains protects aircraft from dust, over spray and cross contamination during operation. They create flexible work spaces that adapt easily to changing layouts of the facility. This is a smarter and cheaper solution than building permanent walls. The FAQ below provides all details about aircraft hangar curtains, how to install and more information that you need to know about it
Aircraft Hangar Curtains FAQ
What are aircraft hangar curtains?
Aircraft hangar curtains are large industrial dividers designed to section off areas inside aviation hangars. They help control temperature, contain dust, and create temporary work zones around aircraft.
What are the main benefits of using hangar curtains?
They provide flexible space division, improve energy efficiency, reduce airflow, keep debris contained, and help maintain cleaner and safer work areas.
Are hangar curtains fire rated?
Yes. Many hangar curtain materials meet fire-resistant standards required for aviation and industrial environments.
Can these curtains withstand harsh weather?
Yes. The materials are designed to withstand drafts, temperature changes, condensation, and typical aircraft hangar conditions.
Can I customize the size for my hangar?
Yes. Curtains are fully custom-made to fit your exact width, height, and layout, including extremely large spans and tall ceilings.
Do hangar curtains help control temperature?
Yes. They help keep heated or cooled air in designated work zones, reducing energy loss in large open hangar spaces.
Can the curtains reduce noise?
Yes. Optional insulated or acoustic panels help reduce noise from aircraft maintenance, tools, and equipment.
Are track systems included?
Yes. The curtains mount to heavy-duty industrial tracks that allow smooth sliding and easy repositioning.
Can hangar curtains be used for privacy?
Yes. They create enclosed work areas for painting, inspections, detailing, or maintenance without needing permanent walls.
Do the curtains help control dust and debris?
Yes. They help contain dust, overspray, and debris to prevent it from spreading across the hangar floor.
Can hangar curtains be insulated?
Yes. Insulated panels are available for temperature control, noise reduction, and energy savings.
Are there clear window options?
Yes. Clear vision panels can be added for supervision, visibility, and safety monitoring.
Are hangar curtains durable?
Yes. They are built using heavy-duty vinyl with reinforced stitching designed for large-scale industrial usage.
Can the curtains be moved or reconfigured?
Yes. Track-mounted designs allow you to reposition or reconfigure the layout as your operational needs change.
How do I maintain aircraft hangar curtains?
Maintenance is simple and includes regular cleaning, checking track rollers, and inspecting the vinyl surface for wear.
Can they be used for paint or prep stations?
Yes. Many hangar curtains are used to create temporary paint, sanding, or prep stations that can open and close quickly.
Do these curtains help improve safety?
Yes. They create controlled work zones that keep personnel separated from hazards and active maintenance areas.
Can hangar curtains be used outdoors?
They are primarily indoor systems, but can be used in semi-exposed environments when properly supported and sealed.
How long do aircraft hangar curtains last?
With proper care, they last many years due to their rugged industrial materials and construction.
Curtain Track
- 16 gauge galvanized steel tracks
- Nylon roller hooks for easy opening
- 6 mounting styles to connect to various structures
- Free standing hardware for up to 20' in height
Static Mount Hardware
- Aluminum Angle - Use with self tapping Tek screws to pinch curtain to angle.
- Grommets Only - You can then use many DIY methods to hang the curtains.
- Beam Clamps - Clamps onto the flange of beams, joists and purlins.
Choose A Style To Get Started
