Benefits
- Protect a vehicle from potential damage
- Protection from flying debris
- Divide up work space for different tasks
- Create a neat and organized appearance
- Create an area of privacy in the garage
- Form walk ways from doors
- Save on heating and cooling with insulated version
Commonly Know As
- garage division curtain
- garage organizer curtain
- garage screen curtain
- garage privacy curtain
- garage splitter curtain

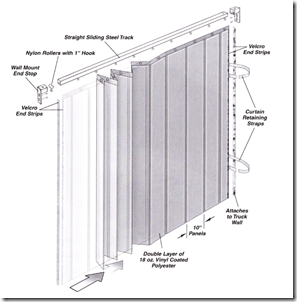

Insulated Garage Divider Curtains
You may also choose to have an insulated garage divider curtain. These curtains have insulated padding that will retain hot air or cold air. This will save on energy costs and still will allow full access from one side to the other.
These insulated garage partition curtains typically run all the way from the floor to the ceiling and Velcro attachment to the adjacent fixed walls. This complete seal ensures that the curtains keep in as much hot or cold air as possible.
There are also several materials you can choose from based on your preference for color, material thickness, and functionality.
Different Track Options
You can choose from several different curtain track styles based on your garage layout. Our line of rolling track allows your curtain to roll from side-to-side with ease. Or if your budget is tight we can supply a steel cable and hang your garage curtain from that.
Additional Features
Chain Weight
Color
Velcro Floor Straps
Split or Combine Multiple Curtains
Floor Sweeps
Photo Gallery
Click below to view some common configurations
Rolling Hardware
- 16 gauge galvanized steel tracks
- Nylon roller hooks for easy opening
- 6 mounting styles to connect to various structures
- Free standing hardware for up to 20' in height
Static Hardware
- Aluminum angle - Use with self tapping Tek screws
- I-beam clamps - Clamps onto the flange of beams, joists and purlins
Opaque Curtains - 13oz, 18oz, 22oz
- Vinyl coated polyester reinforced with scrim
- NFPA fire retardant, CFM fire retardant
- 18oz and 22oz are outdoor rated
- Finished edges for clean crisp appearance
- Double or triple hems used where needed for longevity
- Ideal for temperatures going as low as -10° F to 160° F
- All colors are the same price
- 13 oz = .016″ thick, 1.44 oz. per square foot
- 18 oz = .020″ thick, 2.0 oz. per square foot
- 22 oz = .024″ thick, 2.44 oz. per square foot
Clear Curtains - 20mil and 40mil
- Clear double polished PVC
- NFPA fire retardant, CFM fire retardant
- Outdoor rated
- Finished edges for clean crisp apperance
- Double or triple hems used where needed for longevity
- Ideal for temperatures going as low as 10° F to 140° F
- 20 mil = 20mil thick, 1.98 oz. per square foot
- 40 mil = 40mil thick, 3.95 oz. per square foot
Tinted Curtains - 14mil and 40mil
- Ideal for welding applications
- Blocks most UV radiation for welding
- NFPA fire retardant, CFM fire retardant
- 40mil is outdoor rated
- Finished edges for clean crisp appearance
- Double or triple hems used where needed for longevity
- Ideal for temperatures going as low as 10° F to to 140° F
- 14 mil = 14mil thick, 1.44 oz. per square foot
- 40 mil = 40mil thick, 3.95 oz. per square foot
Chain Weight Bottoms
If you have a slight breeze or are power washing near the curtain then we can add a galvanized 3/16" chain weight to the bottom of the curtain.
Floor Anchor Straps
Velcro straps hold your curtain in place if wind is present or a more secure curtain is required. These anchors feature Velcro straps which loop through a D-ring which is anchored into the cement floor. Typically spaced every 4'.
Floor Sweeps
A floor sweep seals the open area between the curtain and the floor. It attaches to the main curtain by Velcro. They are 6″ tall and as long as the entire length of the curtain. These are ideal for controlling dust, fumes, odors and other undesirable elements. They can also be replaced in the future should the friction from the floor wear them out.
Magnet Seals
Seal magnets are an idea to attach curtains to each other or adjacent steel walls and beams. Best utilized in dusty areas that would clog up Velcro.
Velcro Seals
You can choose to have Velcro installed along the perimeter of the divider which will allow you to combine multiple curtains into one larger curtain. You can also attach self adhesive Velcro to fixed objects such as walls for a more complete seal. Great for dust control and temperature control.
Filter Panels
Primarily used in paint and spray boths, filter panels allows for clean air to enter the curtain enclosure and filter dirty air. The filter panels Velcro to the curtain for easy removal and replacement.
Valance Panels
A valance is made from the same material as your curtain. They are used to seal the opening above the curtain. This is generally the space from the roof deck to the bottom of the joist or purlin. They can be rectangualr or follow the slope of the roof.
Walk Through Strip Doors
Strip doors can be sewn into the curtain or free-standing for larger versions. These allows quick movement of people and forklifts into and out of the industrial curtains.
Key Benefits
- Less expensive than rigid walls
- Can be taken down quickly when not needed
- Can be re-purused in other areas
- Ability to purchase more curtains and attach to existing curtains
- Divide work areas quickly
- Industrial curtains improve worker safety
- Quick to roll out of way when not in use
- Easy to clean with slick surface of Vinyl
- Contain air migration, odors, dust, overspray
- Lifetime warranty on all hardware and 5 year warranty on curtains
Common Layouts
AKON can supply just about any layout you can think of. Below are some common styles. They can be single sided, double-sided, triple sided, four-sided or multiple straights to create complete enclosures. You simply inform AKON about your desired design and we will have it fabricated exactly as you need it. For customized layouts, sketch your design and upload it using our online RFQ form. See button below.
