Freestanding Curtain Booths

freestanding-curtain-booths

OVERVIEW

When there is no existing structure to attach to then the AKON Freestanding Welding Booth is the ideal solution. They can be single sided, four sided, or even connected together to form an entire row of booths. They are also modular in design with bolt together construction to allow for new layouts in the future.


line_dotted2

Choose From Two Styles

freestanding-curtain-booths-by-akon-new

PVC Strip Style

This style of booth utilizes a welding plc. strip curtain to block harmful uv rays. The strips come in 8″ and 12″ widths with an overlap to provide a barrier but still allow access into and out of the booth.

Curtain Style

This style of booth utilizes a vinyl curtain to block harmful uv rays. The curtain can be zip tied to the frame for static position curtains or utilize roller hooks as shown above so the curtains can be pushed to the side for access.

PVC Strip Options

freestanding-curtain-booths-color-options

Protection From UV Rays

Tinted welding strips are designed to filter harmful UV rays from welding processes. The welding strips have a special additive which increases flame resistance and is tinted enough to ensure a safe work environment.

  • Flame retardant
  • Meets California Fire Marshal requirements
  • Available in two widths/thicknesses: 8″/.080″, 12″/.120″
  • Reduces noise
  • Forms a barrier for dust, smoke, flying debris, and sparks and spatter from welding

Color Options

  • Tinted Red
  • Tinted Amber
  • Tinted Green
  • Tinted Blue
  • Tinted Orange

Curtain Options

vinyl-red-bg-white

Opaque Curtains – 18oz

  • Vinyl coated polyester reinforced with scrim
  • NFPA fire retardant, CFM fire retardant. Fire retardant ranging from (CFM, NFPA-701, ATSM E-84 class I)
  • Blocks UV radiation for welding
  • Finished edges for clean crisp appearance
  • Double or triple hems used where needed for longevity
  • Ideal for temperatures around 160° F
  • All colors are the same price
  • 18 oz = .020″ thick, 2.0 oz. per square foot

vinyl-tint-bg-white

Tinted Curtains – 14mil and 40mil

  • Blocks most UV radiation for welding
  • NFPA fire retardant, CFM fire retardant. Fire retardant ranging from (CFM, NFPA-701, ATSM E-84 class I)
  • Finished edges for clean crisp appearance
  • Double or triple hems used where needed for longevity
  • Ideal for temperatures around 140° F
  • 14 mil = 14mil thick, 1.44 oz. per square foot
  • 40 mil = 40mil thick, 3.95 oz. per square foot

Features and Benefits

freestanding-curtain-booths-key-benefits

Key Benefits

  • No welding required, quick and easy bolt together design
  • Modular design allows for future redesign
  • Curtains can quickly be replaced if the need arises
  • Anchoring to the floor is optional for 4 sided enclosures
  • No special installation crews needed
  • Complete access overhead for gantry cranes
  • Custom made per application

freestanding-curtain-booths-frame-specs

Frame Specifications

  • Constructed 16-gauge galvanized steel
  • Strip curtain frames use 2″ or 3″ tubular steel based on height
  • Vinyl curtain frames use 1.25″, 2″ or 3″ tubular steel based on height
  • Maximum height is 18′
  • Maximum distance between uprights is 10′ for Vinyl curtains and 8′ for strip curtains
  • Base plates are 6″ or 12″ each with 4 lag points

freestanding-curtain-booths-safety-benefits

Safety Benefits

  • Contain welding splatter, sparks from grinding, and dust
  • Curtains are fire retardant ranging from (CFM, NFPA-701, ATSM E-84 class I)
  • Help divert and contain harmful fumes and chemicals
  • OSHA approved for welding use
  • Provide a safe walking environment for visitors and non-welding associates

Photo Gallery

Click below to view some common configurations

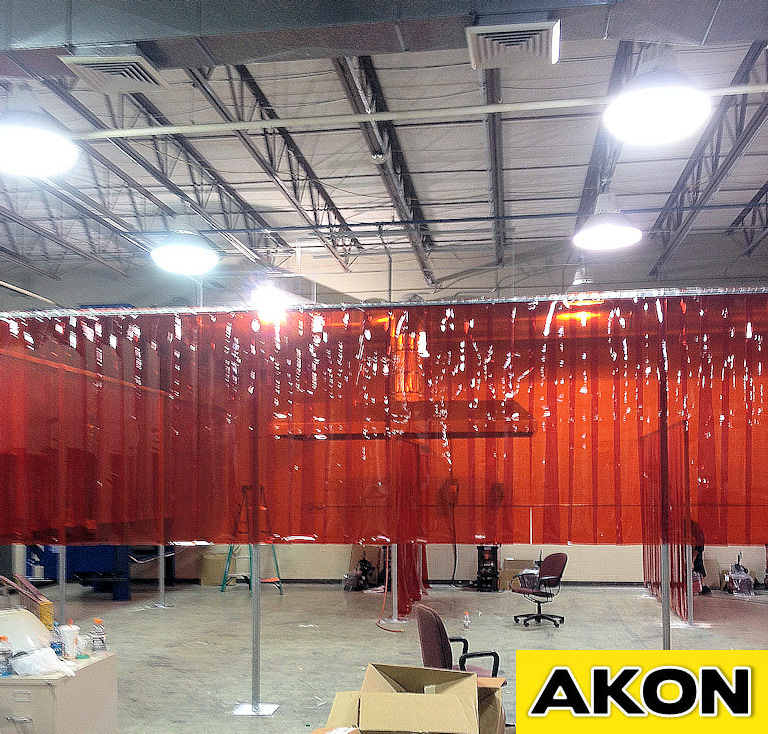

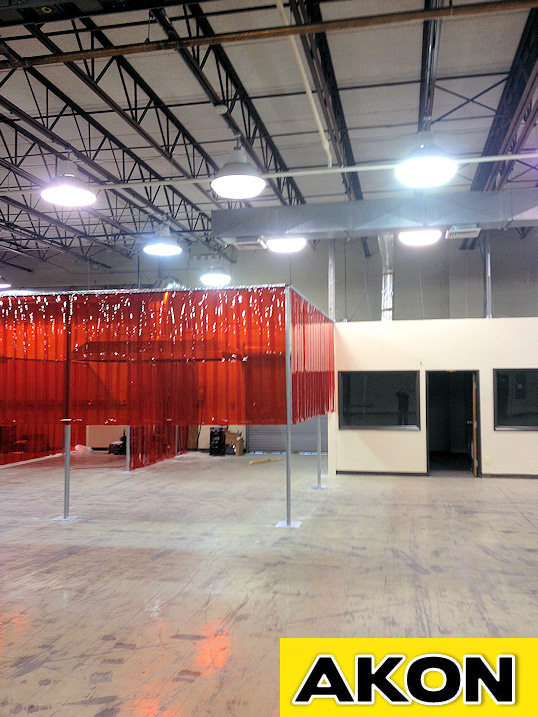

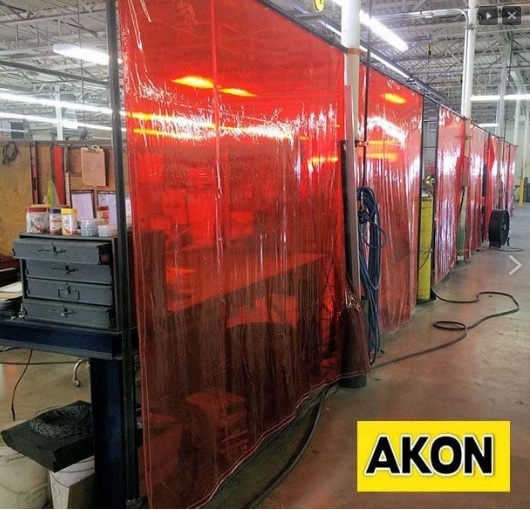

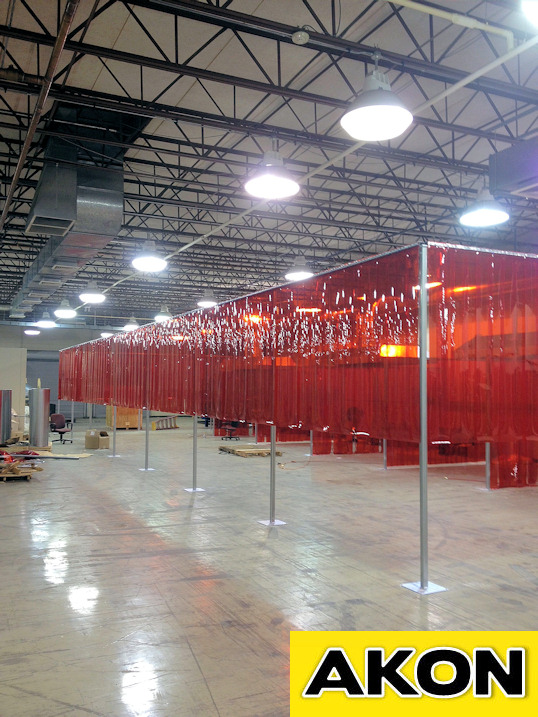

Welding safety curtainWelding dividersWelding curtain stripsTransparent welding curtains

freestanding-curtain-booths

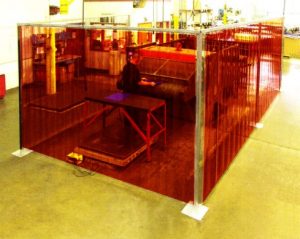

PVC Strip Style

Rapid Quote

welding-curtains-osha

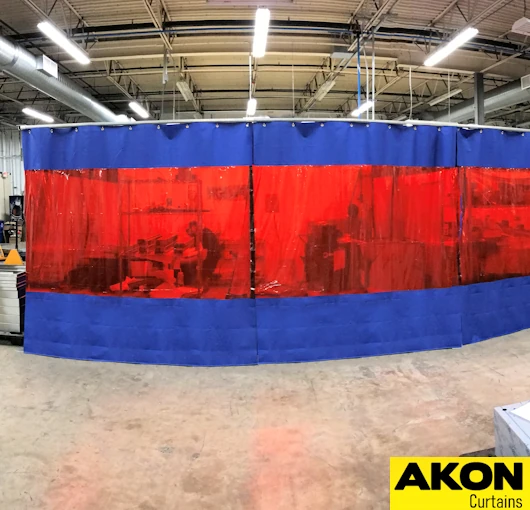

Curtain Style

Rapid Quote
