OVERVIEW

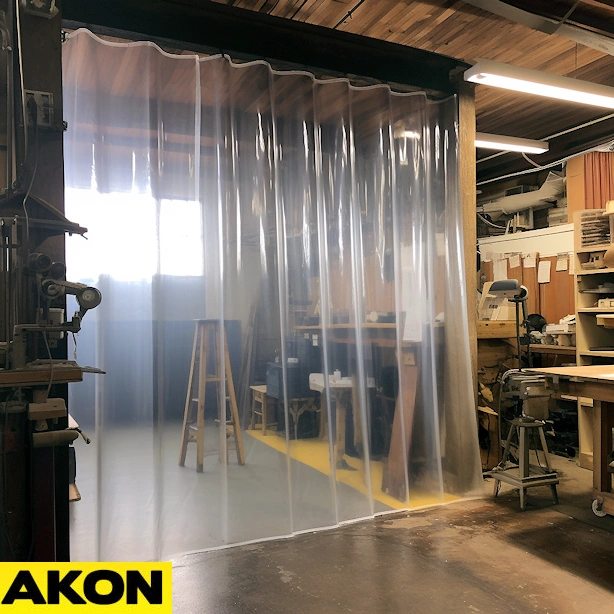

Does your shop have a saw dust problem? Use our Woodworking Curtains for your wood shop. These Vinyl curtains are quick to install and are much less expensive than rigid walls. You can also pull them back when not in use freeing up your work space. The curtains come in a variety of colors and feature a clear strip in the middle to see through increasing safety and allowing light in.

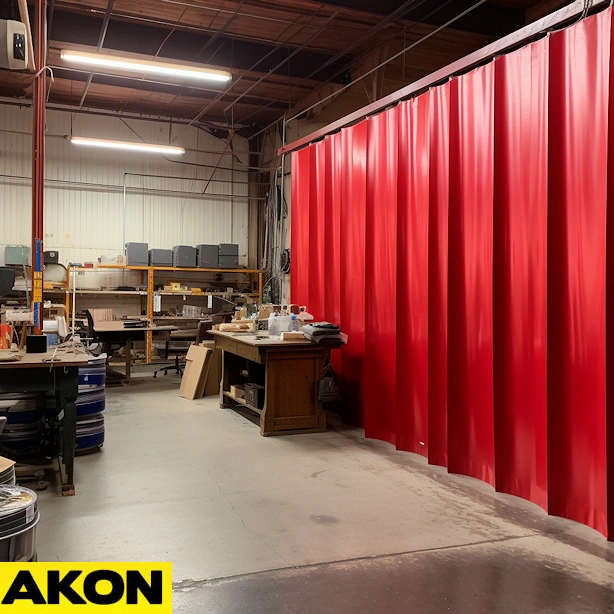

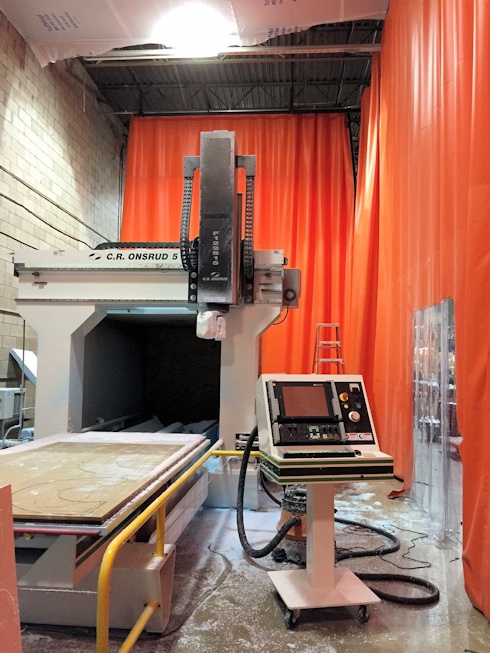

Woodworking Curtains Control Dust

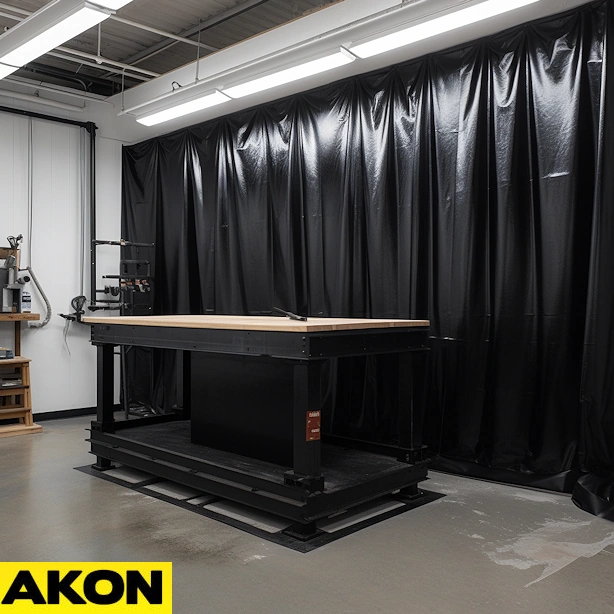

Your workshop can be clean and dust free with the installation of these inexpensive Vinyl Woodworking Curtains. The material is an 18oz Vinyl that is fire retardant and very robust. The curtains come in all shapes and sizes and are custom made to your exact dimensions. Chain pockets are also an option to help weigh down the curtain if your wood shop is drafty. In addition, strip doors can be added for entry and exit which eliminates the needs to open and close the curtains.
Rolling Curtain Track

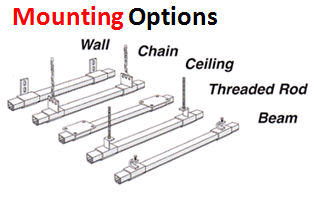

There are also several mounting options to choose from for supporting the curtains. The hardware features rolling hooks that roll in a heavy-duty 16-gauge galvanized steel track. The mounting options range from Wall, Chain, Ceiling, Threaded Rod, and Beam mounts as shown in the graphic on the left. If you want to hang the dust curtains with your own hardware we can ship them without any track at all.
Photo Gallery
Click below to view some common configurations
Rolling Hardware
- 16 gauge galvanized steel tracks
- Nylon roller hooks for easy opening
- 6 mounting styles to connect to various structures
- Free standing hardware for up to 20' in height
Static Hardware
- Aluminum angle - Use with self tapping Tek screws
- I-beam clamps - Clamps onto the flange of beams, joists and purlins
Opaque Curtains - 13oz, 18oz, 22oz
- Vinyl coated polyester reinforced with scrim
- NFPA fire retardant, CFM fire retardant
- 18oz and 22oz are outdoor rated
- Finished edges for clean crisp appearance
- Double or triple hems used where needed for longevity
- Ideal for temperatures going as low as -10° F to 160° F
- All colors are the same price
- 13 oz = .016″ thick, 1.44 oz. per square foot
- 18 oz = .020″ thick, 2.0 oz. per square foot
- 22 oz = .024″ thick, 2.44 oz. per square foot
Clear Curtains - 20mil and 40mil
- Clear double polished PVC
- NFPA fire retardant, CFM fire retardant
- Outdoor rated
- Finished edges for clean crisp apperance
- Double or triple hems used where needed for longevity
- Ideal for temperatures going as low as 10° F to 140° F
- 20 mil = 20mil thick, 1.98 oz. per square foot
- 40 mil = 40mil thick, 3.95 oz. per square foot
Tinted Curtains - 14mil and 40mil
- Ideal for welding applications
- Blocks most UV radiation for welding
- NFPA fire retardant, CFM fire retardant
- 40mil is outdoor rated
- Finished edges for clean crisp appearance
- Double or triple hems used where needed for longevity
- Ideal for temperatures going as low as 10° F to to 140° F
- 14 mil = 14mil thick, 1.44 oz. per square foot
- 40 mil = 40mil thick, 3.95 oz. per square foot
Chain Weight Bottoms
If you have a slight breeze or are power washing near the curtain then we can add a galvanized 3/16" chain weight to the bottom of the curtain.
Floor Anchor Straps
Velcro straps hold your curtain in place if wind is present or a more secure curtain is required. These anchors feature Velcro straps which loop through a D-ring which is anchored into the cement floor. Typically spaced every 4'.
Floor Sweeps
A floor sweep seals the open area between the curtain and the floor. It attaches to the main curtain by Velcro. They are 6″ tall and as long as the entire length of the curtain. These are ideal for controlling dust, fumes, odors and other undesirable elements. They can also be replaced in the future should the friction from the floor wear them out.
Magnet Seals
Seal magnets are an idea to attach curtains to each other or adjacent steel walls and beams. Best utilized in dusty areas that would clog up Velcro.
Velcro Seals
You can choose to have Velcro installed along the perimeter of the divider which will allow you to combine multiple curtains into one larger curtain. You can also attach self adhesive Velcro to fixed objects such as walls for a more complete seal. Great for dust control and temperature control.
Filter Panels
Primarily used in paint and spray boths, filter panels allows for clean air to enter the curtain enclosure and filter dirty air. The filter panels Velcro to the curtain for easy removal and replacement.
Valance Panels
A valance is made from the same material as your curtain. They are used to seal the opening above the curtain. This is generally the space from the roof deck to the bottom of the joist or purlin. They can be rectangualr or follow the slope of the roof.
Walk Through Strip Doors
Strip doors can be sewn into the curtain or free-standing for larger versions. These allows quick movement of people and forklifts into and out of the industrial curtains.
Key Benefits
- Less expensive than rigid walls
- Can be taken down quickly when not needed
- Can be re-purused in other areas
- Ability to purchase more curtains and attach to existing curtains
- Divide work areas quickly
- Industrial curtains improve worker safety
- Quick to roll out of way when not in use
- Easy to clean with slick surface of Vinyl
- Contain air migration, odors, dust, overspray
- Lifetime warranty on all hardware and 5 year warranty on curtains
Common Layouts
AKON can supply just about any layout you can think of. Below are some common styles. They can be single sided, double-sided, triple sided, four-sided or multiple straights to create complete enclosures. You simply inform AKON about your desired design and we will have it fabricated exactly as you need it. For customized layouts, sketch your design and upload it using our online RFQ form. See button below.
