OVERVIEW
AKON offers several industrial welding curtain rolls used to protect welders and bystanders from the dangers of arc welding. The welding bulk rolls come in lengths of 150′ to 300′. Simply unroll the PVC and cut it to your desired length. If that is not ideal, we can ship them with holes already punched and perforated to the lengths you want; then you can simply rip them apart by hand. Keep in mind that you can get welding strip door kits as well.
The Best Welding Bulk Rolls
Easy Install
Replacement welding strip bulk rolls are available with pre-punched mounting holes for a quick installation.
Welding Certified
AKON welding bulk PVC rolls are certified for welding operations with fire retardant ratings and some UV blocking properties.
Protects Welders
Welding strip curtains are ideal for protecting welders from arc flash and sparks that present a safety hazard.
Control Noise
The tinted PVC welding strips help protect your eyes from welding UV rays and reduce noise due to the thick PVC they are made from.
Welding Protection
Designed for Protection
The PVC welding curtain rolls are designed to block out the hazardous rays which are produced by welding processes. Each PVC welding curtain roll includes special additives which add a tint to the material and give it more flame resistance. The strips are designed for use in temperatures between 0°F to +150°F. They are extruded from a special PVC extruder and rolled up ready for you to install.
Welding Curtain Roll – Protection Chart
Above you can review the chart which outlines the protection values from the two most common tinted red and tinted bronze welding strips. Be assured that while all of our welding bulk rolls vary slightly in their performance, they all help reduce harmful UV rays. Please be aware that welding curtains do not replace welding helmets. Welding strip curtains are only made for incidental viewing of welding operations.

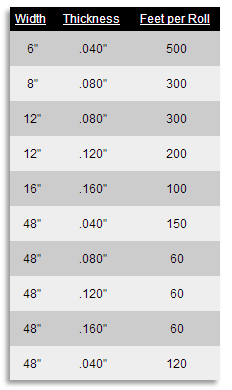

Dimensions
Hole Spacing
When selected, the welding strip bulk rolls come with holes punched every 2" (see example of 8" wide strip above). This allows the strips to fit the vast majority of strip curtain hardware on the market. Please note that you can also purchase the strips without any mounting holes. Some customers choose to punch their own mounting holes onsite. Loop style is also available for mounting to bars and tubes.
Strip Widths
The welding PVC rolls come in 8" wide x .080" thick rolls and 12" wide x .120" thick rolls. The 8″ wide strips are the most common and widely used. The 12" wide strips would be ideal for applications where there is heavy motorized traffic or when the welding strips needs to be taller than 10' in height.
Choose A Color Below
Tinted Red Bulk Roll
Darkness: 2 out 4
Cost: $$
Tinted Bronze Bulk Roll
Darkness: 3 out 4
Cost: $$
Tinted Orange Bulk Roll
Darkness: 2 out 4
Cost: $$$
Tinted Blue Bulk Roll
Darkness: 2 out 4
Cost: $$
Tinted Green Bulk Roll
Darkness: 4 out 4
Cost: $$
Material
- PVC
- Blocks most harmful UV Rays
- UV Absorber - Strips will not discolor
- CFM fire retardant
- 2 Year warranty on manufacturing defects
Strip Dimensions
- 8" wide strips | .080" Thick
- 12" wide strips | .120" Thick
Ratings and Certifications
- Made with formula compound to absorb and protect from hazardous UV rays
- CFM and NFPA-701 flame retardant certifications
- Exceeds OSHA requirements
High Temperature Ranges
- All strips have a temperature max of 160° F
- If higher temperatures are needed then use our line of Heat Rated Strip Curtains
WARNING: Tinted transparent vinyl screens provide protection for casual passerby only and are not intended as a substitute for normal eye protection for close or long-term viewing. The user must wear protective eye-wear suitable for the application. Clear transparent vinyl does not reduce harmful UV light from welding operations.
