OVERVIEW

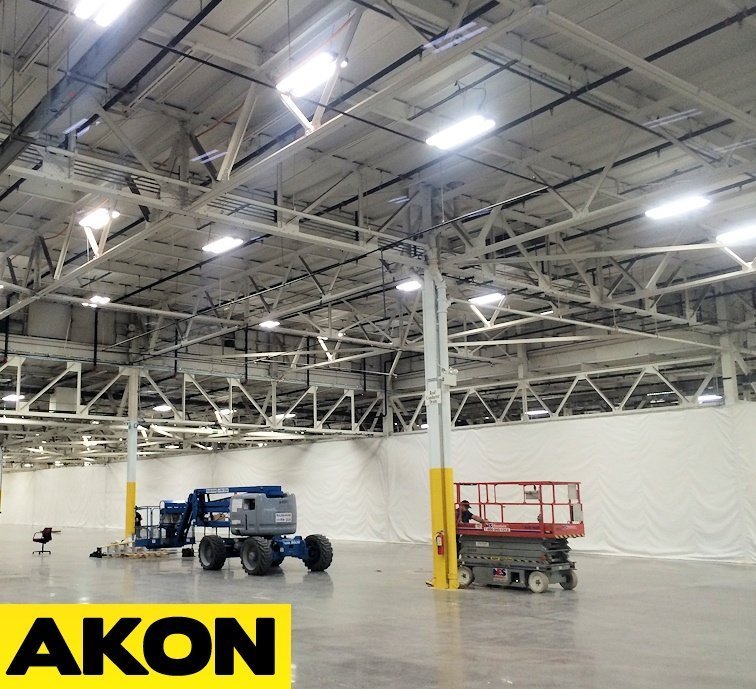

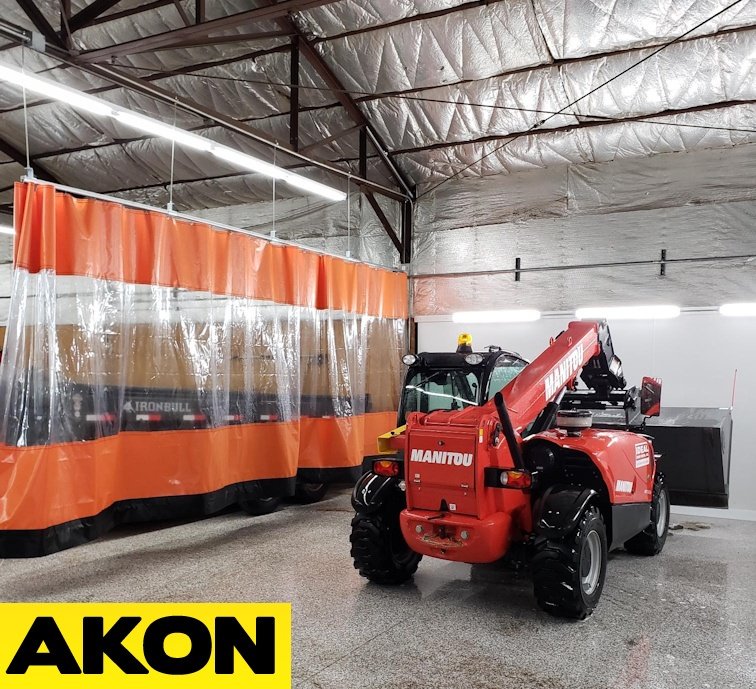

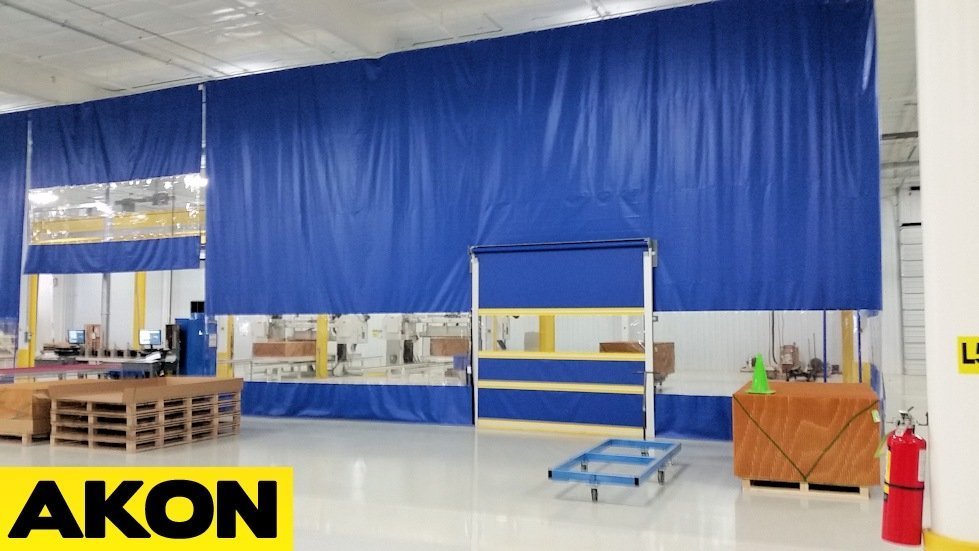

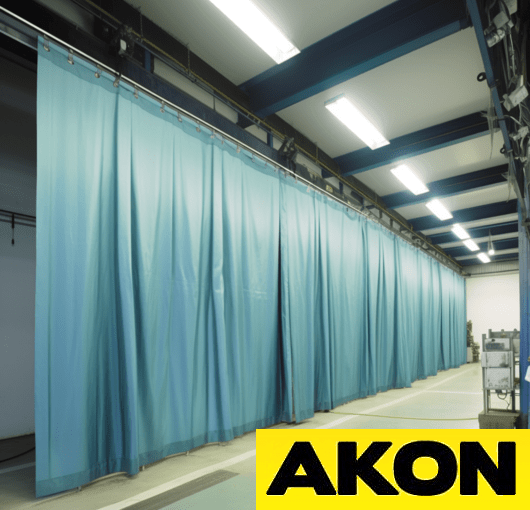

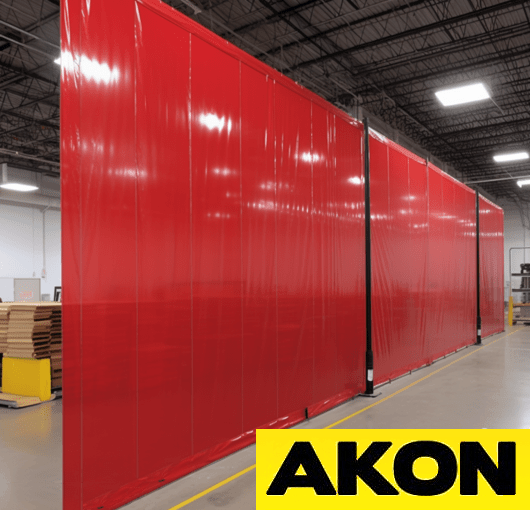

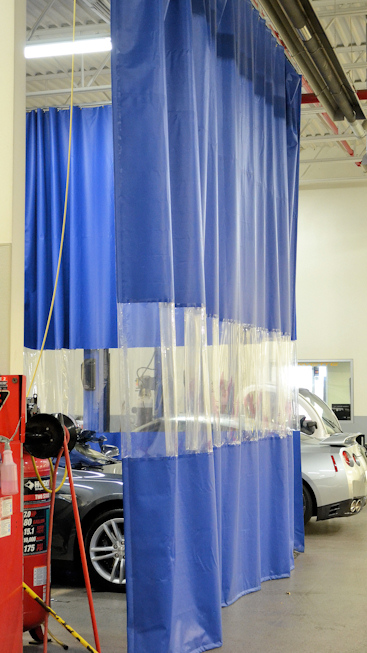

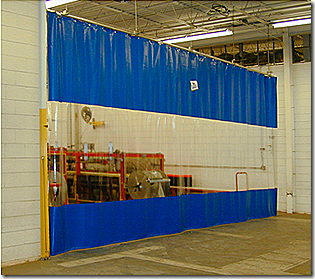

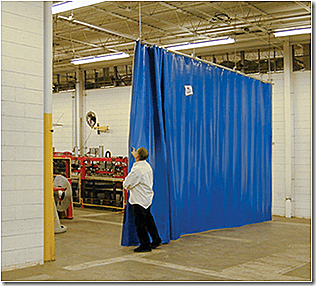

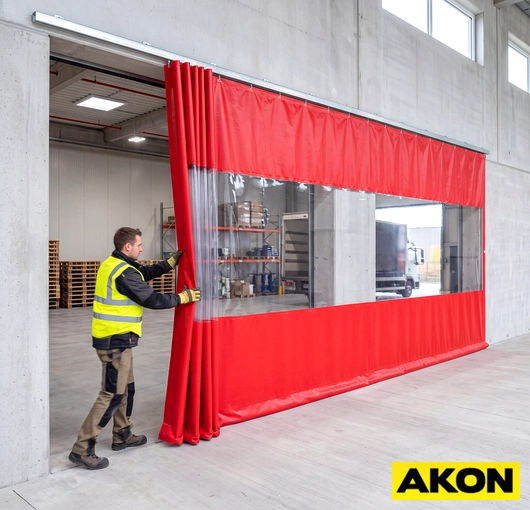

The heavy duty industrial curtain walls are easy to roll from one side to the other. This retractable barrier can be opened and closed in only a few seconds. At only about 1/3rd of the cost of a fixed permanent wall, these industrial vinyl curtain walls are both economical and quick to install.
Designed from a variety of materials based on your application, the industrial curtains are built to last while preserving your budget.

Request Price


line_dotted

industrial-divider-curtains-factory

Ideal Solutions For

  • Dividing up manufacturing space
  • Temperature control
  • Dust control
  • Paint or wash over spray control
  • Smoke containment
  • Humidity containment
  • Welding spark containment

clear-curtain-wall

Key Benefits

  • Less expensive than permanent walls
  • Can be quickly installed and removed
  • Ideal for the winter and summer weather
  • Keeps your workers comfortable
  • Seal off un-used warehouse space
  • Reduce heating and cooling bills
  • Contain dust, over-spray and odors

industrial-curtains-plastic

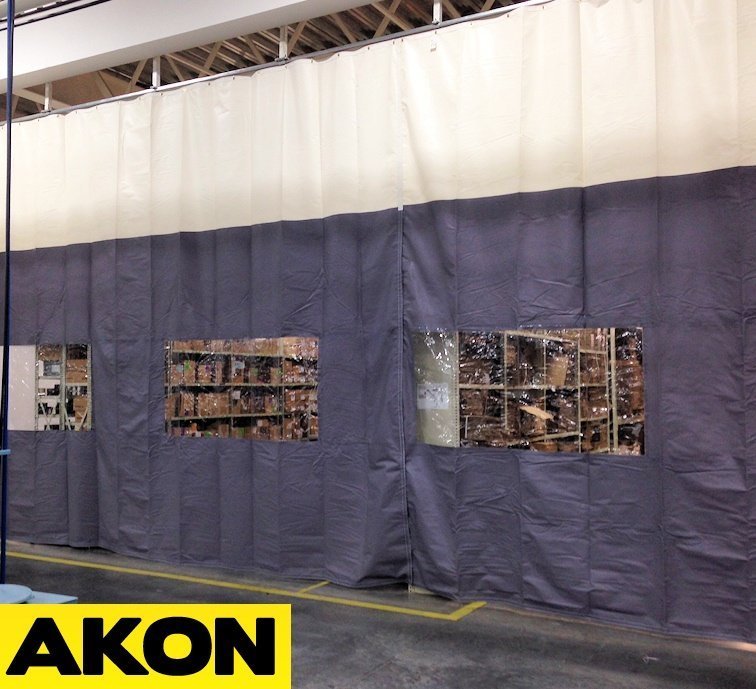

industrial-divider-curtains

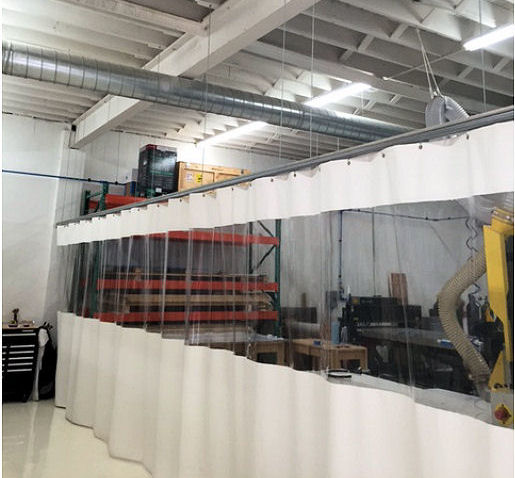

industrial-clear-curtains

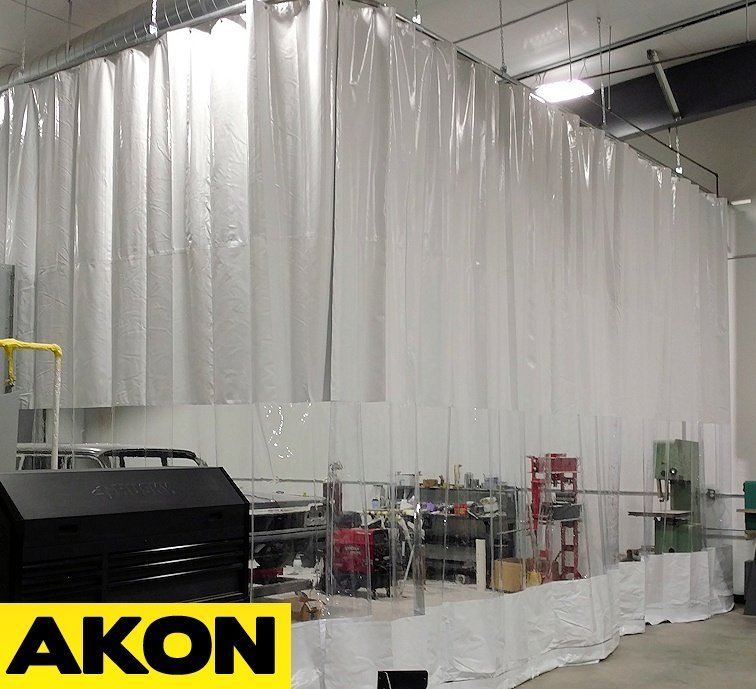

Rapid Access and Safety

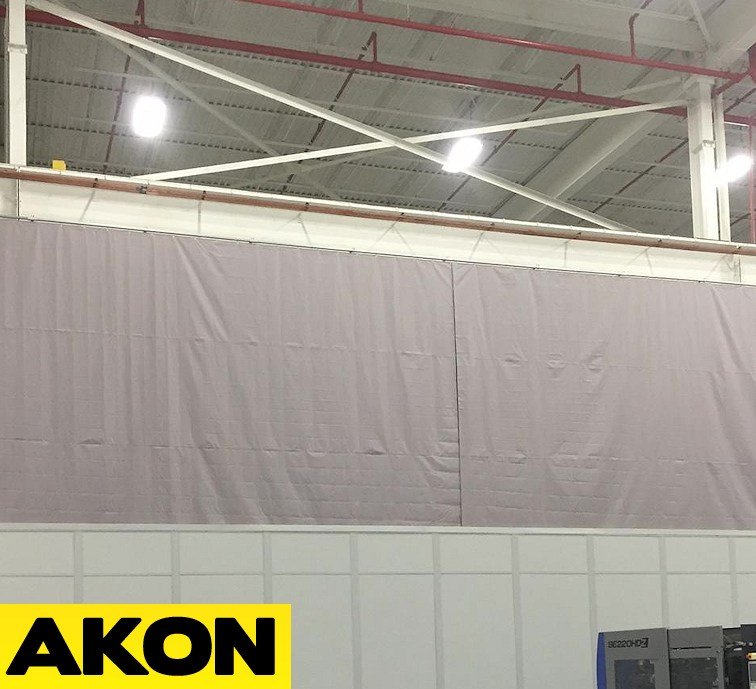

AKON Quick Ship Industrial Curtains are a cost saving solution for areas in need of dust, temperature, and work space zoning. They can be a temporary solution or a long term solution that is both aesthetically appealing and inexpensive. Designed to slide open quickly and easily on their roller hooks, the curtains provide rapid access for product and people to move through. They also meet fire retardant requirements as they are constructed of an 18 oz. polyester reinforced vinyl that has the NFPA-701 fire rating.

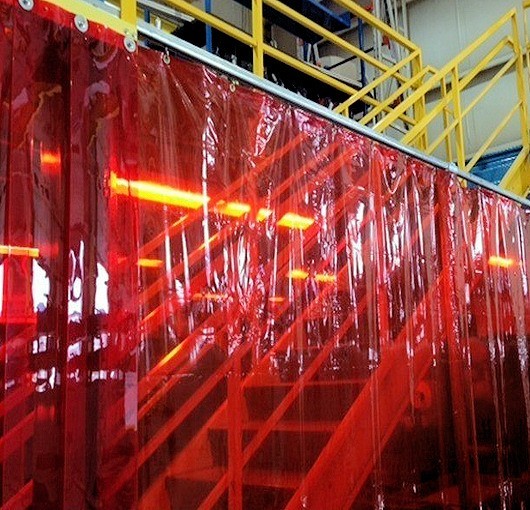

Industrial PVC welding curtains

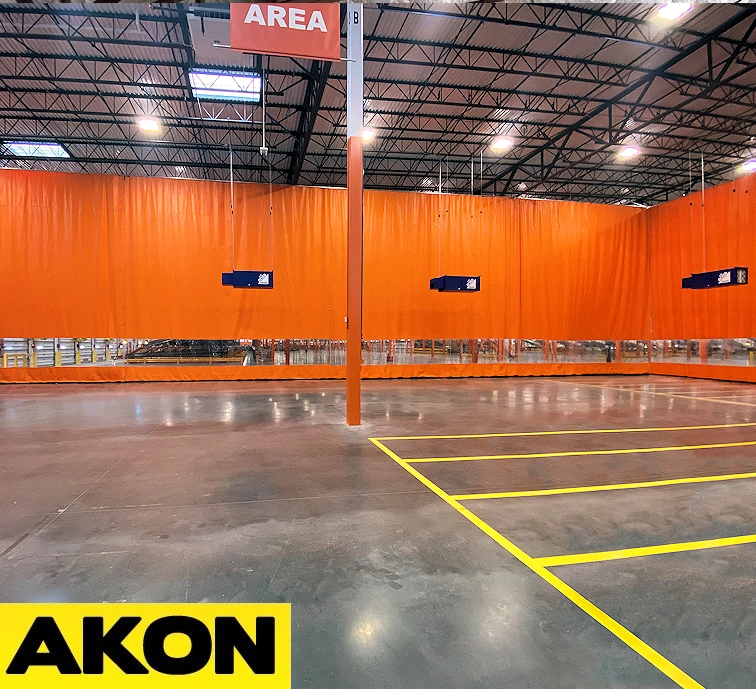

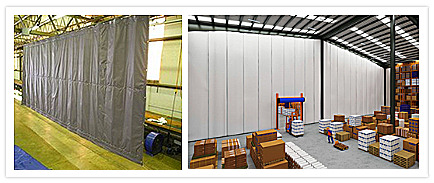

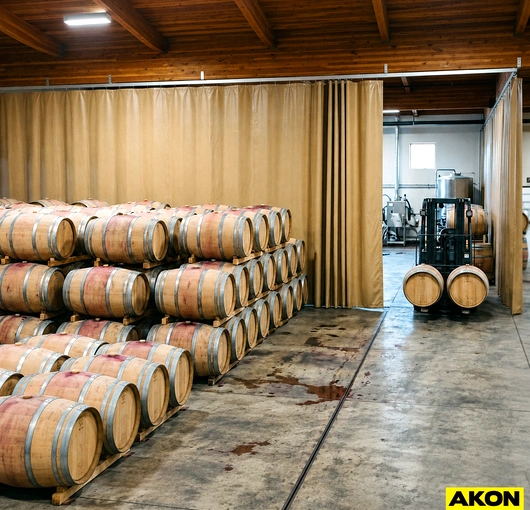

Form Work Areas or Divide Storage

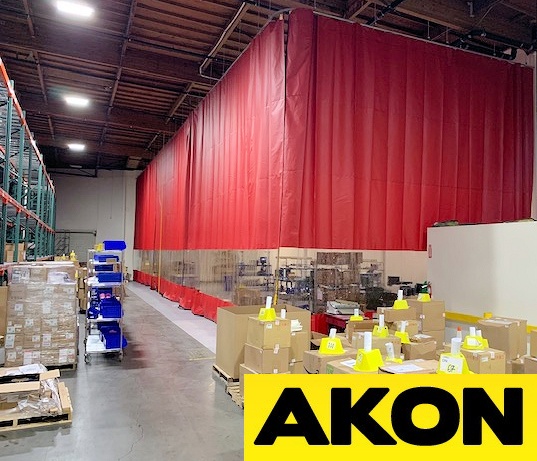

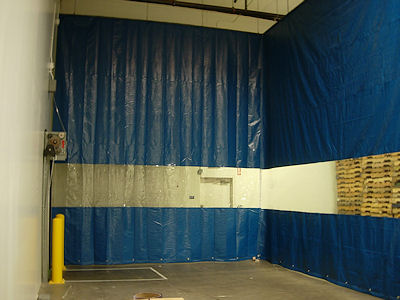

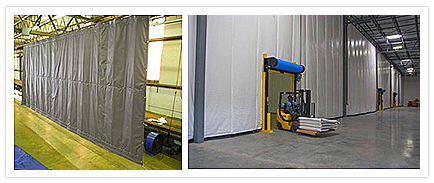

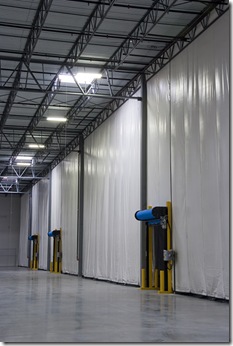

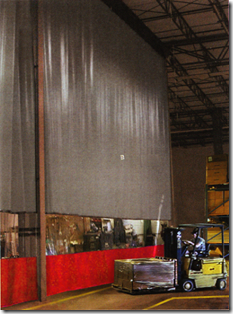

industrial curtain walls are a quick easy to install solution for making work zones or dividing up warehouse space. For example, if a facility has different manufacturing processes in a large area the curtain walls can be used to form smaller work zones. That will help distinguish between different work processes, protect workers and products from other processes, and contain cross-contamination.

Custom Curtain Design

Each industrial vinyl curtain wall is custom designed to your exact specifications. Simply click the request for quote button at the bottom of this page and our form builds your quote for you. You can choose your preferred color, width, height, vision panel and curtain wall material.



Rapid Quote

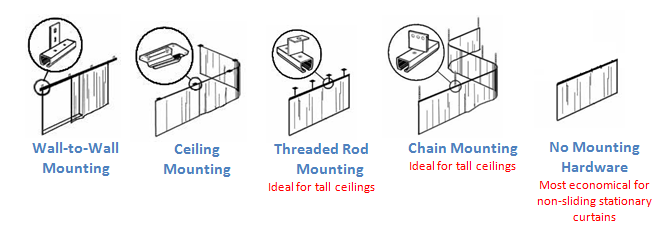

mount-options

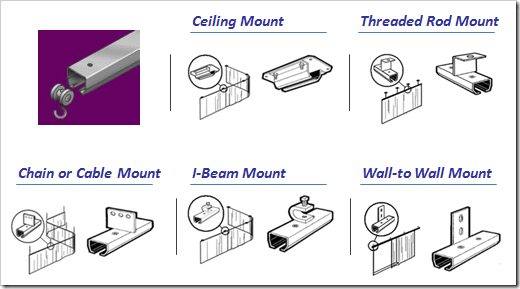

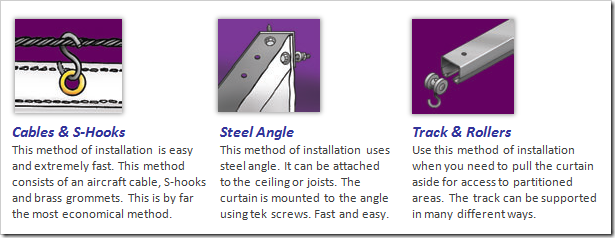

Rolling Hardware

  • 16 gauge galvanized steel tracks
  • Nylon roller hooks for easy opening
  • 6 mounting styles to connect to various structures
  • Free standing hardware for up to 20' in height

static-hardware

Static Hardware

  • Aluminum angle - Use with self tapping Tek screws
  • I-beam clamps - Clamps onto the flange of beams, joists and purlins

Rapid Quote

Opaque Curtains - 13oz, 18oz, 22oz

  • Vinyl coated polyester reinforced with scrim
  • NFPA fire retardant, CFM fire retardant
  • 18oz and 22oz are outdoor rated
  • Finished edges for clean crisp appearance
  • Double or triple hems used where needed for longevity
  • Ideal for temperatures going as low as -10° F to 160° F
  • All colors are the same price
  • 13 oz = .016″ thick, 1.44 oz. per square foot
  • 18 oz = .020″ thick, 2.0 oz. per square foot
  • 22 oz = .024″ thick, 2.44 oz. per square foot
vinyl-red-bg-white

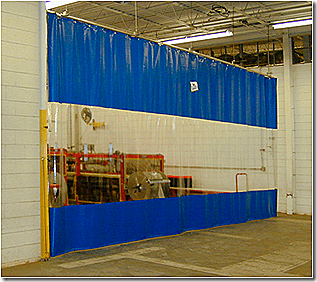

Clear Curtains - 20mil and 40mil

  • Clear double polished PVC
  • NFPA fire retardant, CFM fire retardant
  • Outdoor rated
  • Finished edges for clean crisp apperance
  • Double or triple hems used where needed for longevity
  • Ideal for temperatures going as low as 10° F to 140° F
  • 20 mil = 20mil thick, 1.98 oz. per square foot
  • 40 mil = 40mil thick, 3.95 oz. per square foot
vinyl-clear-bg-white

Tinted Curtains - 14mil and 40mil

  • Ideal for welding applications
  • Blocks most UV radiation for welding
  • NFPA fire retardant, CFM fire retardant
  • 40mil is outdoor rated
  • Finished edges for clean crisp appearance
  • Double or triple hems used where needed for longevity
  • Ideal for temperatures going as low as 10° F to to 140° F
  • 14 mil = 14mil thick, 1.44 oz. per square foot
  • 40 mil = 40mil thick, 3.95 oz. per square foot
vinyl-tint-bg-white

Rapid Quote

Key Benefits

  • Less expensive than rigid walls
  • Can be taken down quickly when not needed
  • Can be re-purused in other areas
  • Ability to purchase more curtains and attach to existing curtains
  • Divide work areas quickly
  • Industrial curtains improve worker safety
  • Quick to roll out of way when not in use
  • Easy to clean with slick surface of Vinyl
  • Contain air migration, odors, dust, overspray
  • Lifetime warranty on all hardware and 5 year warranty on curtains

Rapid Quote

18oz Vinyl

color-options-18oz

14mil Vinyl

color-options-14mil

Rapid Quote

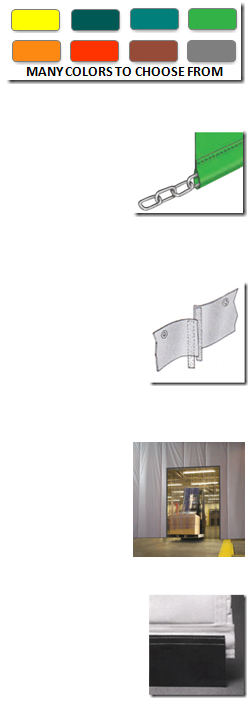

Chain Weight Bottoms

If you have a slight breeze or are power washing near the curtain then we can add a galvanized 3/16" chain weight to the bottom of the curtain.

chain-weight-bottoms

Floor Anchor Straps

Velcro straps hold your curtain in place if wind is present or a more secure curtain is required. These anchors feature Velcro straps which loop through a D-ring which is anchored into the cement floor. Typically spaced every 4'.

floor-anchor-straps

Floor Sweeps

A floor sweep seals the open area between the curtain and the floor. It attaches to the main curtain by Velcro. They are 6″ tall and as long as the entire length of the curtain. These are ideal for controlling dust, fumes, odors and other undesirable elements. They can also be replaced in the future should the friction from the floor wear them out.

floor-sweeps

Magnet Seals

Seal magnets are an idea to attach curtains to each other or adjacent steel walls and beams. Best utilized in dusty areas that would clog up Velcro.

magnet-seals-new

Velcro Seals

You can choose to have Velcro installed along the perimeter of the divider which will allow you to combine multiple curtains into one larger curtain. You can also attach self adhesive Velcro to fixed objects such as walls for a more complete seal. Great for dust control and temperature control.

velcro-seals-new

Filter Panels

Primarily used in paint and spray boths, filter panels allows for clean air to enter the curtain enclosure and filter dirty air. The filter panels Velcro to the curtain for easy removal and replacement.

filter-panels

Valance Panels

A valance is made from the same material as your curtain. They are used to seal the opening above the curtain. This is generally the space from the roof deck to the bottom of the joist or purlin. They can be rectangular or follow the slope of the roof.

valance-panels

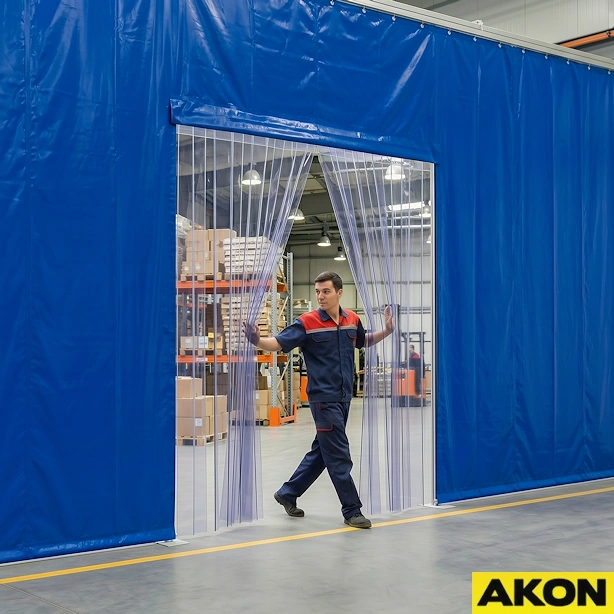

Walk Through Strip Doors

Strip doors can be sewn into the curtain or free-standing for larger versions. These allows quick movement of people and forklifts into and out of the industrial curtains.

walkthrough-strip-doors

Rapid Quote

Common Layouts

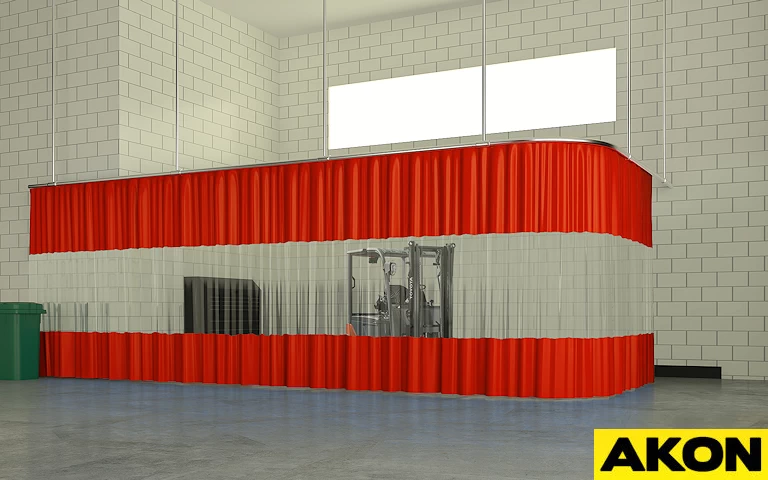

AKON can supply just about any layout you can think of. Below are some common styles. They can be single sided, double-sided, triple sided, four-sided or multiple straights to create complete enclosures. You simply inform AKON about your desired design and we will have it fabricated exactly as you need it. For customized layouts, sketch your design and upload it using our online RFQ form. See button below.
all-sided-curtains
