Outdoor Industrial Curtains

outdoor-heavy-curtains

OVERVIEW

wind-proof-curtainsWith the use of the AKON line outdoor industrial curtains you can separate your products, workers, and environment from the elopements from the outdoors. These large outdoor curtains are an inexpensive alternative to large doors and are a fraction of the cost. Installation is quick and side to side movement is available with the use of the industrial curtain tracks.



Request Price


outdoor-weather-curtains-2

Outdoor Curtain Benefits

  • Reduce heating and cooling bills
  • 18 or 22oz Vinyl can withstand the rigors of the weather
  • Track allows the heavy duty outdoor curtains to move
  • Inexpensive compared to fixed walls
  • Does not bend and damage like metal walls and doors
  • Can be taken down and stored when not in use
  • Vision panels can be added for line of sight

outddoor-industrial-curtains

Large Outdoor Curtains

For applications where large coverage is required. Akon can supply you with large outdoor curtains which can cover the sides of entire buildings. We will choose a material which is ideal for your application and which will ensure you and your internal environments are protected from the elements. These industrial outdoor curtains are constructed of the same heavy duty vinyl.

outdoor-industrial-pvc-curtains

Vinyl Material

Unlike indoor industrial curtain walls, outdoor industrial curtain walls are exposed to wind, cold, rain, and UV light from the sun. This requires the vinyl material to be at least an 18oz or 22oz coated vinyl. It is important that the material is a coated Vinyl as laminates when exposed to the cold can experience cold crack. We can also provide insulated outdoor curtains for maintaining temperatures inside of your facility.

Photo Gallery

outdoor-industrial-door-curtains industrial-outdoor-curtain-wall outdoor-dock-curtains outdoor-vehicle-wash-bay-curtains large-building-curtains outdoor-garage-curtains outdoor-vinyl-curtains outdoor-shop-curtains outdoor-pvc-curtainslarge-outdoor-curtains

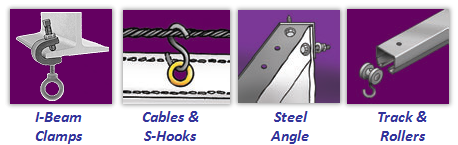

mount-options

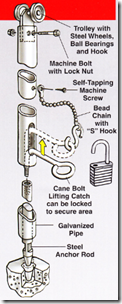

Rolling Hardware

  • 16 gauge galvanized steel tracks
  • Nylon roller hooks for easy opening
  • 6 mounting styles to connect to various structures
  • Free standing hardware for up to 20' in height
static-hardware

Static Hardware

  • Aluminum angle - Use with self tapping Tek screws
  • I-beam clamps - Clamps onto the flange of beams, joists and purlins

Rapid Quote

Opaque Curtains - 18oz, 22oz

  • Vinyl coated polyester reinforced with scrim
  • NFPA fire retardant, CFM fire retardant
  • 18oz and 22oz are outdoor rated
  • Finished edges for clean crisp appearance
  • Double or triple hems used where needed for longevity
  • Ideal for temperatures going as low as -10° F to 160° F
  • All colors are the same price
  • 18 oz = .020″ thick, 2.0 oz. per square foot
  • 22 oz = .024″ thick, 2.44 oz. per square foot
vinyl-red-bg-white

Clear Curtains - 20mil and 40mil

  • Clear double polished PVC
  • NFPA fire retardant, CFM fire retardant
  • Outdoor rated
  • Finished edges for clean crisp appearance
  • Double or triple hems used where needed for longevity
  • Ideal for temperatures going as low as 10° F to 140° F
  • 20 mil = 20mil thick, 1.98 oz. per square foot
  • 40 mil = 40mil thick, 3.95 oz. per square foot
vinyl-clear-bg-white

Tinted Curtains - 14mil and 40mil

  • Ideal for welding applications
  • Blocks most UV radiation for welding
  • NFPA fire retardant, CFM fire retardant
  • 40mil is outdoor rated
  • Finished edges for clean crisp appearance
  • Double or triple hems used where needed for longevity
  • Ideal for temperatures going as low as 10° F to to 140° F
  • 14 mil = 14mil thick, 1.44 oz. per square foot
  • 40 mil = 40mil thick, 3.95 oz. per square foot
vinyl-tint-bg-white

Temperature Ratings

  • Clear Curtains - 20 Mil and 40 Mil Clear and Clear Vision Panels - Ideal for temperatures going as low as 10° F or -12° C and above. If folded below these temperatures or blown around in the wind the vinyl will likely crack. If your environment is likely to have temperatures below this range it is best to use only opaque solid color curtains.
  • Opaque Solid Color - 18 oz Coated - Ideal for temperatures going as low as 0° F or -17° C. If folded below these temperatures or blown around in the wind the vinyl will likely crack. If your environment is likely to have temperatures below this range it is best to use our 22 oz curtains.
  • Opaque Solid Color - 22 oz Coated - Ideal for temperatures going as low as -22° F or -30° C. If folded below these temperatures or blown around in the wind the vinyl will likely crack. If your environment is likely to have temperatures below this range it is best to not use our curtains.

Rapid Quote

18oz Vinyl

color-options-18oz

Rapid Quote

Chain Weight Bottoms

If you have a slight breeze or are power washing near the curtain then we can add a galvanized 3/16" chain weight to the bottom of the curtain.

chain-weight-bottoms

Floor Anchor Straps

Velcro straps hold your curtain in place if wind is present or a more secure curtain is required. These anchors feature Velcro straps which loop through a D-ring which is anchored into the cement floor. Typically spaced every 4'.

floor-anchor-straps

Floor Sweeps

A floor sweep seals the open area between the curtain and the floor. It attaches to the main curtain by Velcro. They are 6″ tall and as long as the entire length of the curtain. These are ideal for controlling dust, fumes, odors and other undesirable elements. They can also be replaced in the future should the friction from the floor wear them out.

floor-sweeps

Magnet Seals

Seal magnets are an idea to attach curtains to each other or adjacent steel walls and beams. Best utilized in dusty areas that would clog up Velcro.

magnet-seals-new

Velcro Seals

You can choose to have Velcro installed along the perimeter of the divider which will allow you to combine multiple curtains into one larger curtain. You can also attach self adhesive Velcro to fixed objects such as walls for a more complete seal. Great for dust control and temperature control.

velcro-seals-new

Wind Mesh Panels

Reduces stress on the curtain by allowing some wind through the curtain. Ideal for very windy applications and large curtains. Spaced approximately every 6'.

wind-mesh-panels

Valance Panels

A valance is made from the same material as your curtain. They are used to seal the opening above the curtain. This is generally the space from the roof deck to the bottom of the joist or purlin. They can be rectangualr or follow the slope of the roof.

valance-panels

Walk Through Strip Doors

Strip doors can be sewn into the curtain or free-standing for larger versions. These allows quick movement of people and forklifts into and out of the industrial curtains.

walkthrough-strip-doors

Rapid Quote

Key Benefits

  • Less expensive than rigid walls
  • Can be taken down quickly when not needed
  • Can be re-purused in other areas
  • Ability to purchase more curtains and attach to existing curtains
  • Divide work areas quickly
  • Industrial curtains improve worker safety
  • Quick to roll out of way when not in use
  • Easy to clean with slick surface of Vinyl
  • Contain air migration, odors, dust, overspray
  • Lifetime warranty on all hardware and 5 year warranty on curtains

Rapid Quote

Common Layouts

AKON can supply just about any layout you can think of. Below are some common styles. They can be single sided, double-sided, triple sided, four-sided or multiple straights to create complete enclosures. You simply inform AKON about your desired design and we will have it fabricated exactly as you need it. For customized layouts, sketch your design and upload it using our online RFQ form. See button below.
all-sided-curtains
