Description

Current Lead Time: 1-4 working days to ship out
Approval Confirmation: Sent to you after you place your order for one final look
Price Guarantee: We beat all prices by 5% if you find it lower
Warranty: 1 year manufacturing defect warranty

Watch The Screens in Action

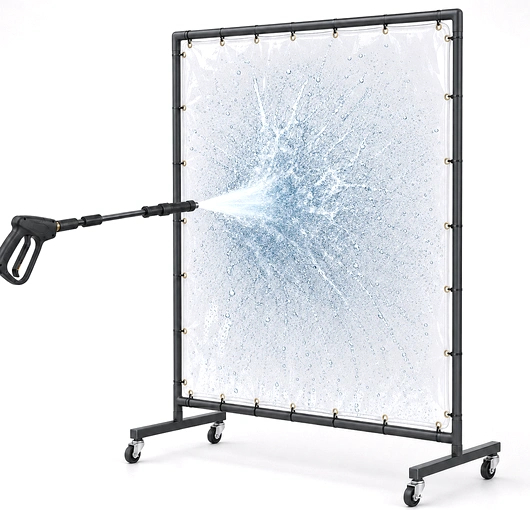

Name: Portable Wash Down Screens
SKU: clearportablepartitions
Availability: InStock

Shades Hardware Layouts

Shades

Shade Features

NFPA fire retardant, CFM fire retardant
Finished edges for clean crisp appearance
Attached to the frame every 12" on all sides plus corners

Shade Styles

Attention CA Residents: Prop 65 Warning

Hardware

Frame Options

Standard Duty - 3/4" square tube frame
Heavy Duty - 1" square tube frame

Features

Quick slip-fit connection permits quick and easy assembly without tools
Industrial 18-gauge steel
Rust-resistant black enamel-finish paint
Square tube frame eliminates slipping and twisting that occur with round tube frames
Any screen can be used horizontally or vertically by changing the legs
24" outward legs can be turned 90 degrees to prevent interference with adjoining screens

Casters

Optional casters available for quick and safe mobility
Standard casters swivel and do not lock
Locking casters are available just ask for them on the special notes of the order form

Layouts

Connection The Shades

The shade frames are modular in design and quickly connect with a joint connector. These pop in and out so you can quickly change your layouts.

welding-screen-multi-layout

Layout Options

There are many different layout options to choose from by simply adding 2, 3 or 4 panel connectors as shown below. If you want to purchase extra connectors just input the qty and style you want on the special notes box on this order form and we will add them to your order.

2 panel connectors = $27 each
3 panel connectors = $43 each
4 panel connectors = $61 each

welding-screen-connector

Common Questions

If I purchase a double layout and I choose a 6' x 6' panel do I get (2) 6' x 6' panels?
Yes our form is setup so that if you choose a double layout you would get two panels per the size you choose. This would give you a 12'w x 6'h overall length if you had them straight in a row.

If I purchase a triple layout could I reconfigure it into 3 individual stand alone curtains to be able to use at different places?
Yes. Even a single panel curtain can stand alone. Using 2 out of 3 would not be a problem standing alone.

Can these be connected together to form a long straight wall?
Yes you can use our portable screens many configurations even as a straight line to form a long straight separation wall. They connect together with the hinges so any length is possible. For instance if you needed a 40 foot wall which is 10 feet tall you would connect four units which are 10' x 10' that are hinged together to form one continuous wall. We can also supply a Velcro flap which would close the gap between the units so there is even less splash access.

Can the shades be flipped so a 5' x 10' becomes a 10' x 5'?
Yes the screens are modular in design so that any screen can be used both horizontally or vertically. You would just quick disconnect the mounting legs, flip the screen and reattach the legs. Its very quick.

Portable Wash Down Screens

Step 1 - Choose Layout

Single

Double

Triple

Quad

Step 2 - Choose Shade Color

Step 3 - Choose Panel Size

Step 4 - Choose Features

Special Request
