OVERVIEW
Akon supplies industrial warehouse divider curtains for warehouses of all sizes and shapes. We can supply standard vinyl warehouse curtain dividers to divide up space or provide insulated curtain walls which are ideal for creating temperature zones. Akon can provide expert advice and solutions which will result in a successful smooth installation. In addition to educating you and your staff on the benefits and limitations of these large warehouse dividers, you will receive one of the most economical curtains on the market.
Modular In Design
One of the key benefits of warehouse divider curtains is their ability to be installed and utilized until your application or needs change. The warehouse curtains can then be taken down and stored on pallets or reconfigured for another application. The industrial warehouse curtains simply Velcro together in sections making them easy to manage and reconfigure.
Warehouse Divider Curtain Benefits
- reduce your warehouse heating and cooling bills
- seal off unused floor space for future use
- vinyl warehouse dividers are less expensive than fixed walls
- contains dust from wind and work processes
- contains paint over spray for large scale painting projects
- contains smoke from assembly and manufacturing processes
- control humidity for more comfortable work conditions
- maintain a comfortable temperature for workers
- great for cold storage warehouses and distribution centers
Insulated Warehouse Curtains
If your primary objective is to insulate or divide temperature zones in your facility, then you can install our insulated warehouse divider curtains. These curtains come in 5’ wide panels which Velcro together and have R-Values which range from R3 to R15. The insulated warehouse divider walls also come with all of the standard features of the non-insulated dividers but have an inner double batting antimicrobial core.
Features
-
flame retardant fabric prevents accidental fires from sparks
-
available in any height or width
-
can be designed to mount with grommets or hook & loop
-
can separate temperatures up to 40 degrees.
-
mesh panels can be added for windy environments
-
modular in design for future application needs
-
the warehouse divider curtain can be anchored to the floor
-
divider curtain sections can be Velcro connected

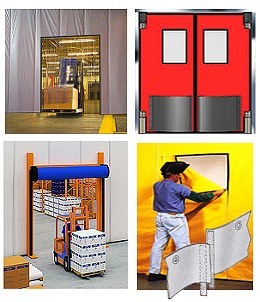

Access Options

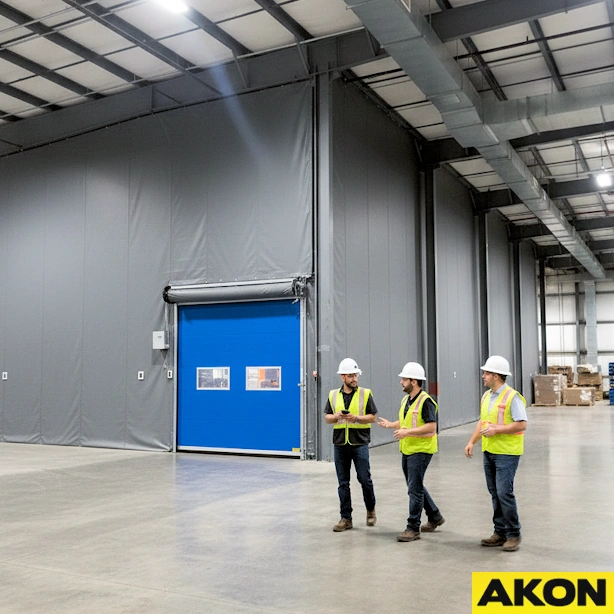

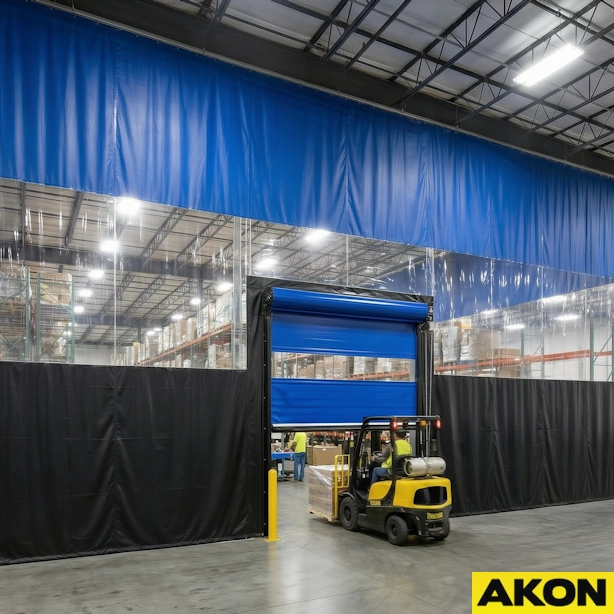

Most warehouse curtains are stationary due to their size. As a result, an access point is required for forklift traffic and personnel traffic. The most economical solution is a industrial strip curtain entrance. These are clear vinyl strips that form a barrier between both sides while still allowing traffic through. For infrequent access, a simple Velcro spilt can be added. Powered roll-up doors and industrial swinging doors are also available. View all entry options here

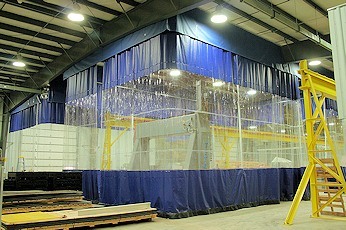

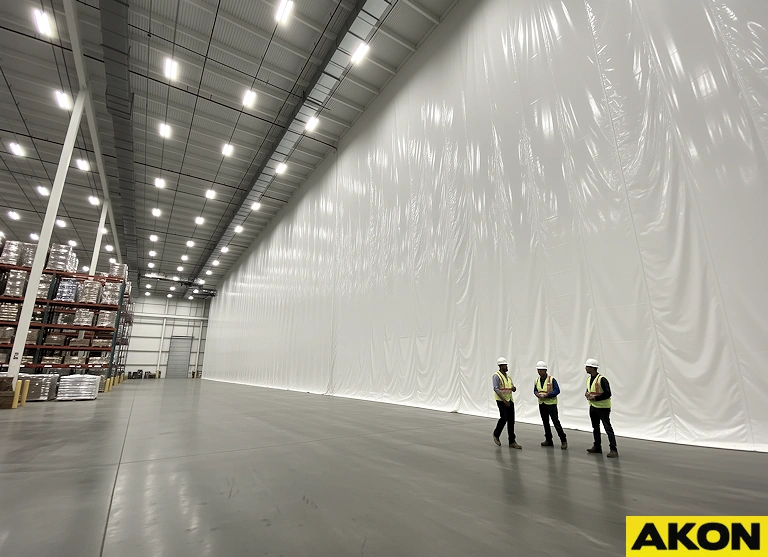

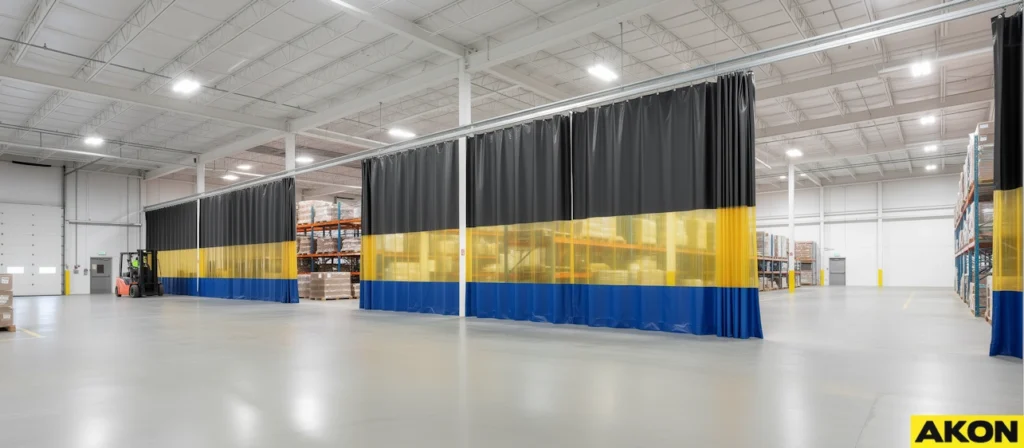

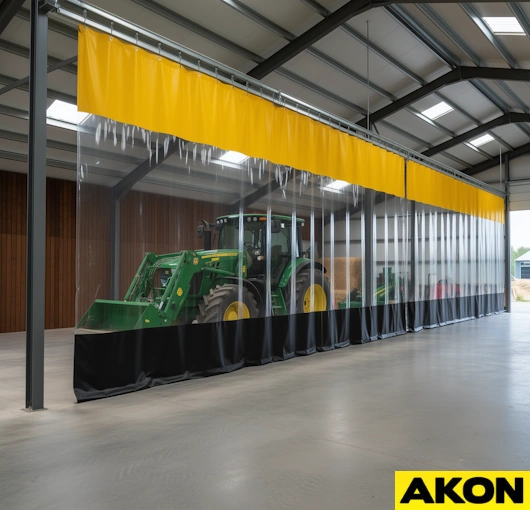

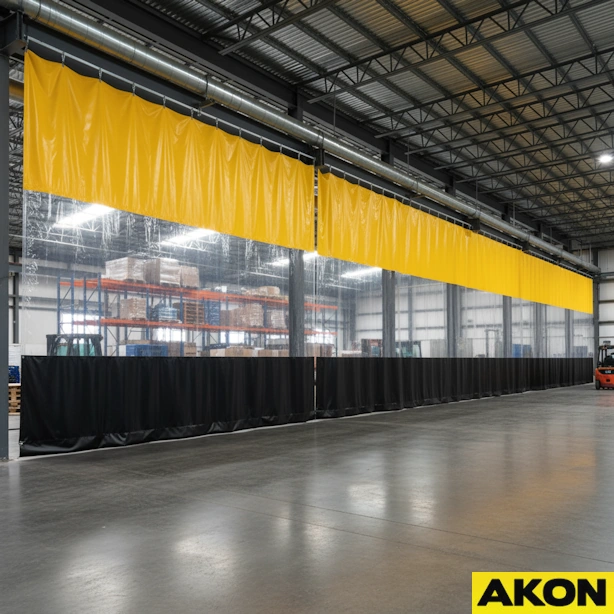

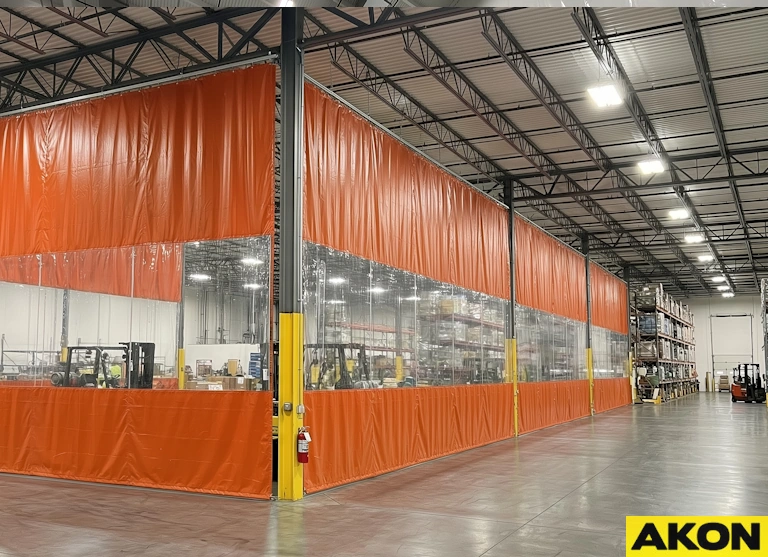

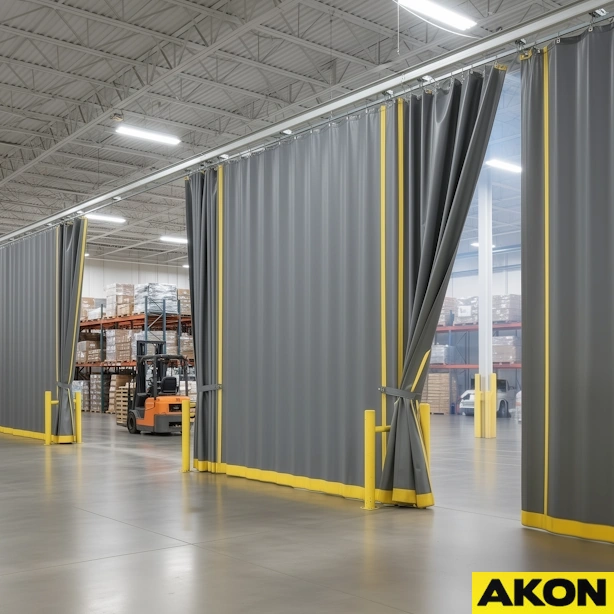

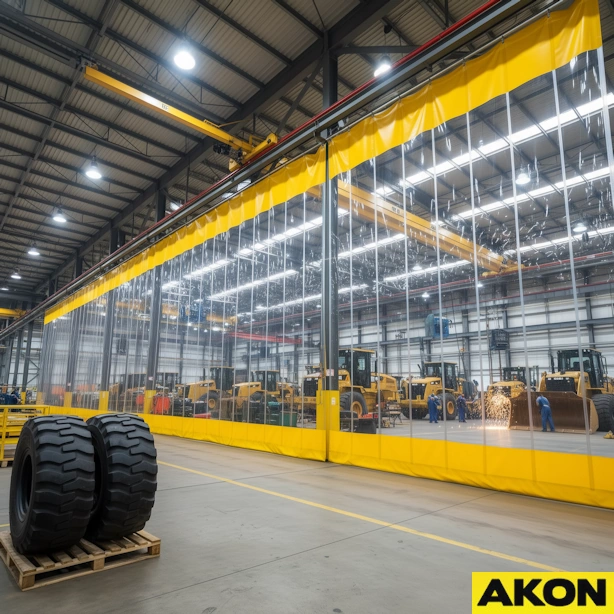

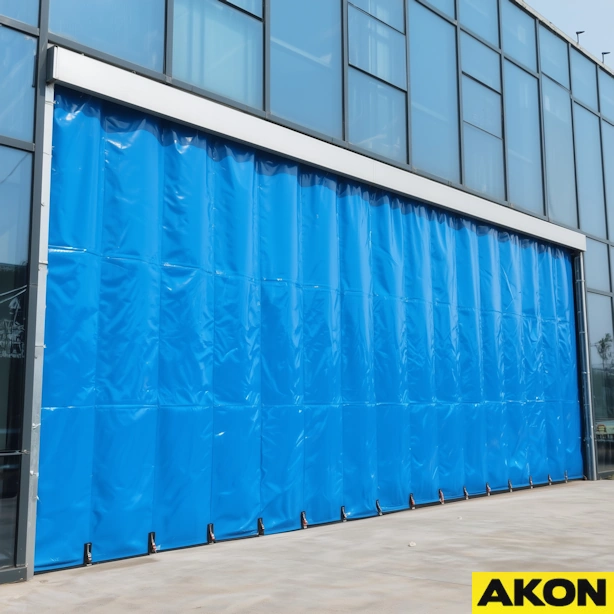

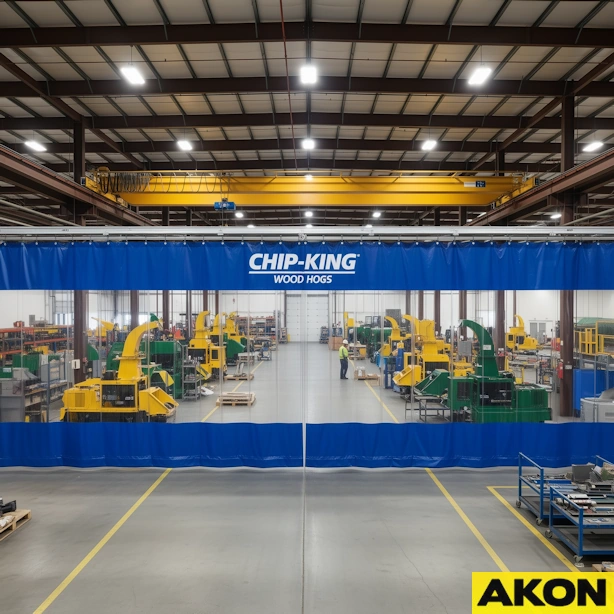

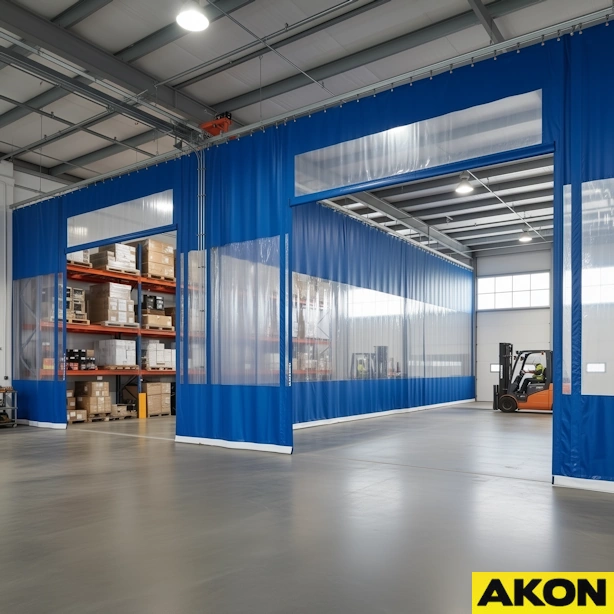

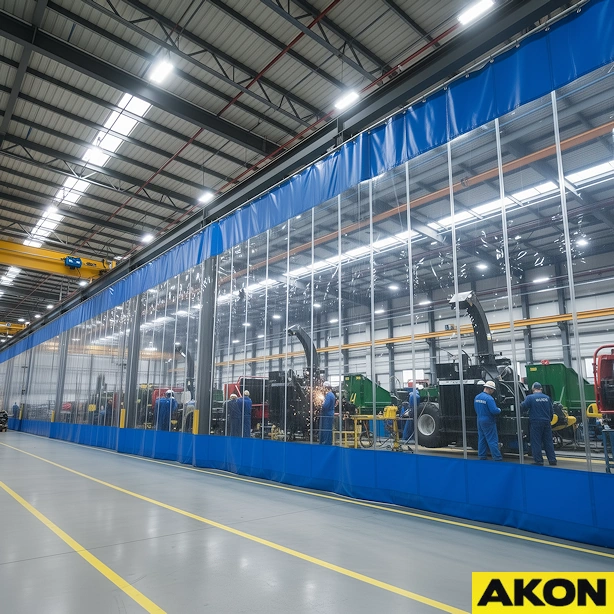

Photo Gallery
Click below to view some common configurations
Rolling Hardware
- 16 gauge galvanized steel tracks
- Nylon roller hooks for easy opening
- 6 mounting styles to connect to various structures
- Free standing hardware for up to 20' in height
Static Hardware
- Aluminum angle - Use with self tapping Tek screws
- I-beam clamps - Clamps onto the flange of beams, joists and purlins
Opaque Curtains - 13oz, 18oz, 22oz
- Vinyl coated polyester reinforced with scrim
- NFPA fire retardant, CFM fire retardant
- 18oz and 22oz are outdoor rated
- Finished edges for clean crisp appearance
- Double or triple hems used where needed for longevity
- Ideal for temperatures going as low as -10° F to 160° F
- All colors are the same price
- 13 oz = .016″ thick, 1.44 oz. per square foot
- 18 oz = .020″ thick, 2.0 oz. per square foot
- 22 oz = .024″ thick, 2.44 oz. per square foot
Clear Curtains - 20mil and 40mil
- Clear double polished PVC
- NFPA fire retardant, CFM fire retardant
- Outdoor rated
- Finished edges for clean crisp apperance
- Double or triple hems used where needed for longevity
- Ideal for temperatures going as low as 10° F to 140° F
- 20 mil = 20mil thick, 1.98 oz. per square foot
- 40 mil = 40mil thick, 3.95 oz. per square foot
Chain Weight Bottoms
If you have a slight breeze or are power washing near the curtain then we can add a galvanized 3/16" chain weight to the bottom of the curtain.
Floor Anchor Straps
Velcro straps hold your curtain in place if wind is present or a more secure curtain is required. These anchors feature Velcro straps which loop through a D-ring which is anchored into the cement floor. Typically spaced every 4'.
Floor Sweeps
A floor sweep seals the open area between the curtain and the floor. It attaches to the main curtain by Velcro. They are 6″ tall and as long as the entire length of the curtain. These are ideal for controlling dust, fumes, odors and other undesirable elements. They can also be replaced in the future should the friction from the floor wear them out.
Magnet Seals
Seal magnets are an idea to attach curtains to each other or adjacent steel walls and beams. Best utilized in dusty areas that would clog up Velcro.
Velcro Seals
You can choose to have Velcro installed along the perimeter of the divider which will allow you to combine multiple curtains into one larger curtain. You can also attach self adhesive Velcro to fixed objects such as walls for a more complete seal. Great for dust control and temperature control.
Filter Panels
Primarily used in paint and spray boths, filter panels allows for clean air to enter the curtain enclosure and filter dirty air. The filter panels Velcro to the curtain for easy removal and replacement.

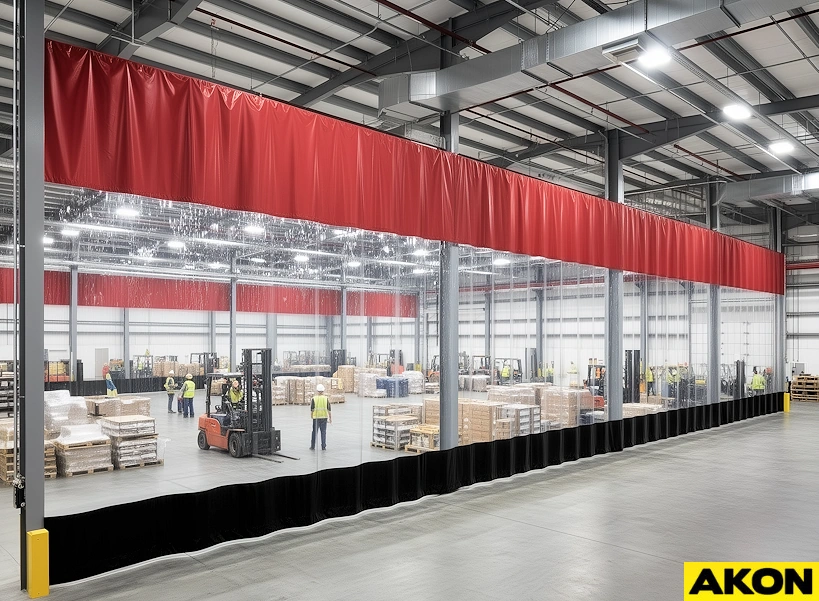

Valance Panels
A valance is made from the same material as your curtain. They are used to seal the opening above the curtain. This is generally the space from the roof deck to the bottom of the joist or purlin. They can be rectangualr or follow the slope of the roof.

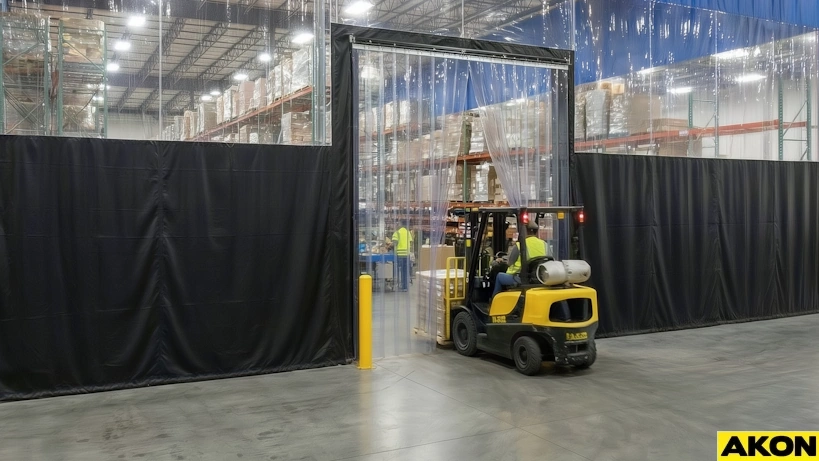

Walk Through Strip Doors
Strip doors can be sewn into the curtain or free-standing for larger versions. These allows quick movement of people and forklifts into and out of the industrial curtains.
Key Benefits
- Less expensive than rigid walls
- Can be taken down quickly when not needed
- Can be re-purused in other areas
- Ability to purchase more curtains and attach to existing curtains
- Divide work areas quickly
- Industrial curtains improve worker safety
- Quick to roll out of way when not in use
- Easy to clean with slick surface of Vinyl
- Contain air migration, odors, dust, overspray
- Lifetime warranty on all hardware and 5 year warranty on curtains
Common Layouts
AKON can supply just about any layout you can think of. Below are some common styles. They can be single sided, double-sided, triple sided, four-sided or multiple straights to create complete enclosures. You simply inform AKON about your desired design and we will have it fabricated exactly as you need it. For customized layouts, sketch your design and upload it using our online RFQ form. See button below.
