Free-Standing Hardware

• Free-standing hardware for up to 10' in height
• Base plates don't need to be anchored to the floor
• Can be moved around if needed for future flexibility
• 16 gauge galvanized steel construction
• Bolt together design, no welding needed
• Can be taken apart if needed and reassembled

Examples of Sound Blocking

When trying to reduce equipment noise, most people simply say they want it “quieter” without knowing how much reduction theyactually need. These audio clips demonstrate what different decibel reductions actually sound like using real machine noise — so you can hear the difference, not just read about it.

🔊 Machine Noise (Original)
This is the unaltered recording of the machine at full volume. It serves as the reference sound to compare against the reduced versions.

🔉 3 dB Reduction
Slight Change. A 3 dB drop reduces the perceived volume by about 18%. This change is minimal and only slightly noticeable to the average ear.

🔉 6 dB Reduction
Clearly Noticeable. Reducing the noise by 6 dB results in roughly a 34% decrease in perceived loudness. Most people can easily hear the difference at this level.

🔉 10 dB Reduction
Sounds Half as Loud. A 10 dB reduction cuts the perceived sound by 50%. This is a significant drop that makes the machine sound much quieter.

🔉 20 dB Reduction
Major Difference. With a 75% decrease in perceived volume, this level of reduction delivers a dramatic change and makes the machine sound far less intrusive.

How To Choose A Barrier Based on The Type of Noise

High-pitched (high-frequency) and low-pitched (low-frequency) sounds behave very differently, and different materials are more effective for each

✅ Best for High-Pitched Sounds (High Frequencies – 1000 Hz and up)

Think: Saws, grinders, drills, alarms, air compressors

▶ Quilted Sound Panels

• These are highly effective for high-frequency sounds.
• The quilted fiberglass layer absorbs high-frequency sound waves very well — with NRC ratings around 0.75–0.85.
• Absorptive materials are ideal for reducing echo and reverberation caused by sharp, high-pitched noises.

Why?
High-frequency sounds have short wavelengths that are easily absorbed by porous materials like fiberglass, mineral wool, or open-cell foam. Quilted panels trap these sound waves and convert them into heat.

✅ Best for Low-Pitched Sounds (Low Frequencies – below 500 Hz)

Think: Generators, diesel engines, HVAC systems, pile drivers

▶ Quilted Panels with MLV Core (Hybrid)

• For best results, use quilted sound blankets that contain an internal MLV layer.
• These combine absorption (for high frequencies) and mass (for low frequencies).

Why?
Low-frequency sound waves have long wavelengths and more energy. They pass through lightweight materials easily and are hard to absorb. High-mass materials like MLV resist the movement of these waves, making them more effective for blocking bass-like rumble.

Summary

Key Benefits

🔇 1. Maximum Noise Reduction

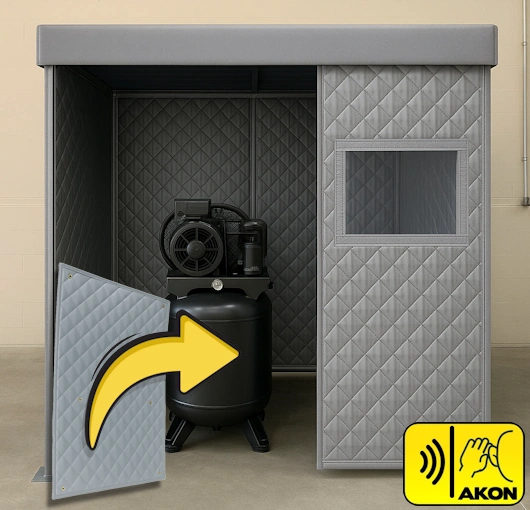

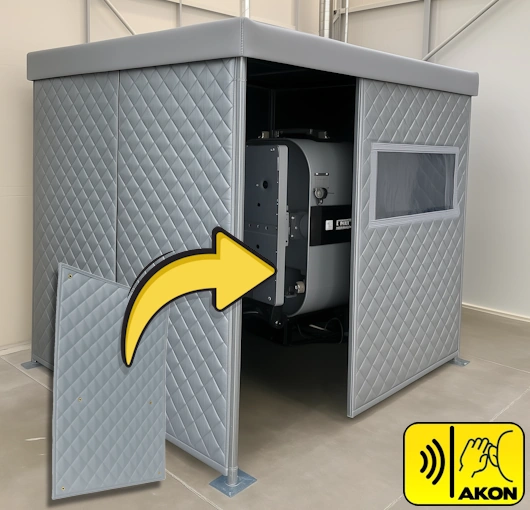

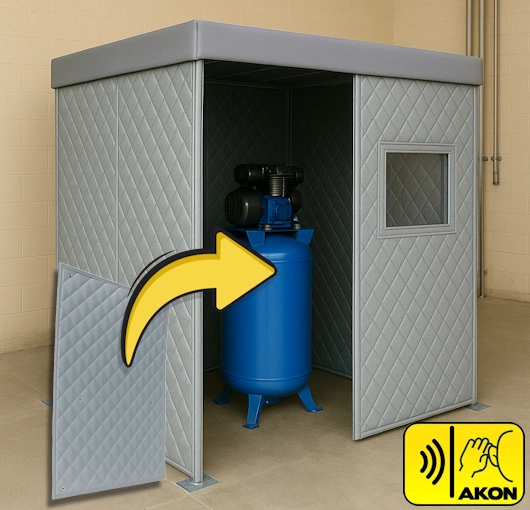

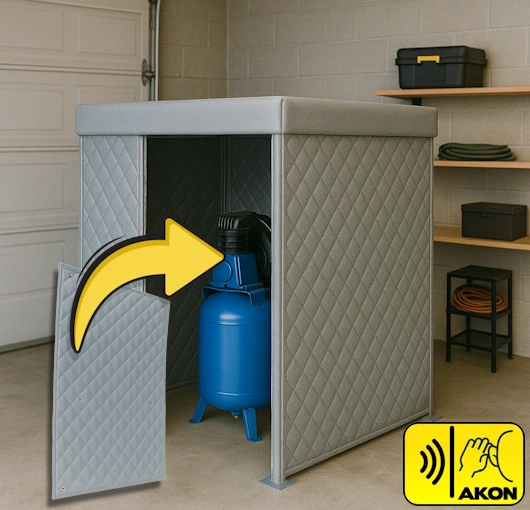

The full-roofed, box-shaped enclosure significantly reduces decibel levels by fully surrounding the compressor, helping meet OSHA or local noise ordinances.

🧵 2. High-Performance Quilted Material

Constructed from premium quilted acoustic panels that absorb and dampen sound waves rather than reflecting them, ideal for industrial noise control.

🔧 3. Access-Friendly Design

Modular panels allow easy removal for maintenance, filter changes, or inspections without disassembling the entire enclosure.

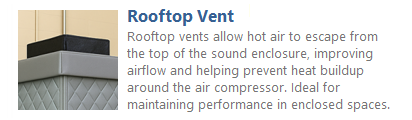

🌬️ 4. Allows Ventilation and Airflow

Designed to support natural airflow or forced ventilation so the compressor doesn’t overheat while sound is being contained.

🛠️ 5. Custom-Fit for Any Compressor

Made to your equipment’s exact size, ensuring a snug fit that optimizes soundproofing without interfering with performance.

🏭 6. Ideal for Indoor or Outdoor Use

Built to withstand factory environments or outdoor weather with a weather-resistant finish and durable construction.

👷 7. Protects Workers and Residents

Reduces risk of hearing damage and increases comfort for workers or neighbors exposed to high noise levels.

✅ 8. Meets Compliance Requirements

Helps you comply with local noise regulations, workplace safety standards, and community noise restrictions.

🔩 9. Modular & Expandable

If your setup changes, the modular system makes it easy to resize, reconfigure, or expand the enclosure as needed.

💸 10. Long-Term ROI

Durable materials and long service life mean fewer replacements, lower maintenance, and a higher return on investment for noise control solutions.

Common Questions

How might these panels cut noise?
Comprising soft, porous, open-celled materials, the panels absorb sound waves, therefore lowering ambient noise levels and reverberation duration. The internal MLV core adds additional benefits by reflecting the noise back to the source.

Are the panels fire-rated?
Yes, the quieted soundproofing industrial panels are class A fire rated per ASTM E-84.

What are the Industrial quilted sound panels?
Made from fiberglass or another porous substance, flexible, fabric-faced acoustic remedies called industrial quilted sound panels are In industrial and commercial settings, they are intended to absorb and block sound, therefore lowering echo, reverberation, and general noise levels.

What materials make up these panels?
Fiberglass batting's basic width is 2". The facings are made from nonwoven porous scrim, silicone-coated fiberglass, or vinyl-coated fiberglass fabric. For durability and looks, diamond or straight stitch patterns, and for maximum sound shielding, the panels also have mass-loaded vinyl barriers inside.

Are they outdoor-useable?
They are outdoor rated when you inform us, as we will add a special coating to the panels. These weather-resistant facings, which are silicone-coated, are then ok for outdoor use.

How should I keep these panels neat and maintained?
Maintenance is simple by performing frequent dusting or vacuuming, with spot cleaning stains with a light detergent. Steer clear of strong chemicals that might compromise the face material. For particular cleaning advice, you can ask your AKON representative.
