Home / Industrial Curtains / Canvas Welding Curtains
canvas-welding-curtain-divider
canvas-welding-curtain-wall
canvas-welding-curtain-walls

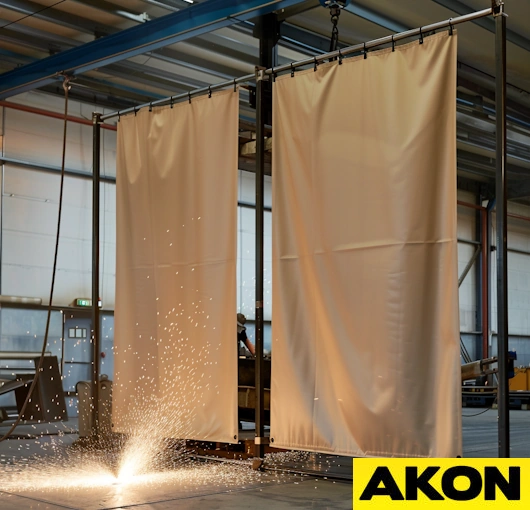

Canvas Welding Curtains

Akon is one of the most recognized suppliers of industrial welding curtains in North America. Our Canvas Welding Curtains are ideal for setting up welding areas to contain sparks and flying debris which create hazardous situations. Our OSHA certified product line is unique and is manufactured through a specialized process using high quality fire retardant materials. Available in olive and blue, these curtains are ideal for small, medium, or plant-wide applications. If you need to move your curtains around, then you can use canvas welding screens. The shields are made from the same industrial canvas welding curtain material as welding blankets. The curtains can be used as single sided welding dividers or multi-sided welding booths with custom widths and heights. If the sizes below are not right just use our quick quote form.

custom-quote-icon

Build Your Curtain Below

  • Step 1 - Choose Your Layout

  • Step 2 - Enter Curtain Dimensions

  • Side A
  • Width
  • Height
  • Please enter a number greater than or equal to 60.
  • inches
  • Hidden
  • Please enter a number greater than or equal to 60.
  • inches
  • Minimum: 60"
  • Minimum: 60"
  • Hidden
  • Side B
  • Width
  • Height
  • Please enter a number greater than or equal to 60.
  • Please enter a number greater than or equal to 60.
  • inches
  • Hidden
  • Hidden
  • Please enter a number greater than or equal to 60.
    for 2-sided
  • Please enter a number greater than or equal to 60.
    for 2-sided
  • inches
  • Minimum: 60"
  • Minimum: 60"
  • Hidden
  • Hidden
  • Side C
  • Width
  • Height
  • Please enter a number greater than or equal to 60.
    for 3-sided
  • Please enter a number greater than or equal to 60.
    for 3-sided
  • inches
  • Hidden
  • Hidden
  • Please enter a number greater than or equal to 60.
    for 3-sided
  • Please enter a number greater than or equal to 60.
    for 3-sided
  • inches
  • Minimum: 60"
  • Minimum: 60"
  • Hidden
  • Hidden
  • Side D
  • Width
  • Height
  • Please enter a number greater than or equal to 60.
    for 4-sided and multiple straights
  • Please enter a number greater than or equal to 60.
    for 4-sided and multiple straights
  • inches
  • Hidden
  • Hidden
  • Please enter a number greater than or equal to 60.
    for 4-sided and multiple straights
  • Please enter a number greater than or equal to 60.
    for 4-sided and multiple straights
  • inches
  • Minimum: 60"
  • Minimum: 60"
  • Hidden
  • Hidden
  • HOW TO MEASURE

  • Step 3 - Choose Your Curtain Material

  • Step 4 - Choose Your Hardware (Optional)

  • this is for hardware for side to side movement
  • this is for hardware for side to side movement and 2-sided
  • this is for hardware for side to side movement and 3-sided
  • this is for hardware for side to side movement and 4-sided
  • this is for hardware for static position
  • Price: $0.00 Quantity:
  • Price: $0.00 Quantity:
    MS
  • Price: $1.00 Quantity:
  • Price: $1.00 Quantity:
  • Price: $0.00 Quantity:
  • Price: $0.00 Quantity:
  • Price: $0.00 Quantity:
  • Hidden
  • Hidden
  • Special Request

SKU: canvasweldingcurtains5x5bluewallmount Categories: Industrial Curtains, Welding Tag: Welding
  • Description

Description

Ceiling Corner Connector 90°
Hardware Curtains How to Measure Benefits Ordering
Hardware

Rolling Hardware

  • 16 gauge galvanized steel tracks
  • Nylon roller hooks for easy opening
  • 6 mounting styles to connect to various structures
  • Free standing hardware for up to 20' in height

Industrial Curtain Hanging Options

Static Mount Hardware

  • Aluminum Angle - Use with self tapping Tek screws to pinch curtain to angle.
  • Grommets Only - You can then use many DIY methods to hang the curtains.
  • Beam Clamps - Clamps onto the flange of beams, joists and purlins.
Curtains

Curtain Features

  • Blocks UV radiation from tig and mig welding
  • Ideal for close proximity heavy welding applications
  • Unlike vinyl welding curtains the material can handle hot heavy weld slag
  • NFPA fire retardant, CFM fire retardant
  • Finished edges for clean crisp appearance
  • Grommets every 12" located at the top of the curtain

12oz – Canvas Duck – Olive Green & Blue

  • Industrial Grade Canvas
  • Blocks most UV radiation
  • Weight: 12 oz./sq. yd
  • Thickness: 0.025″
  • Temp Rating: 350°F
  • Color: Olive green
  • Meets CPAI-84 section 6, CFM
  • Certified Flame Retardant
  • Grommeted on top side 12″ apart
  • Flame, water, and mildew resistant
  • Also available in multiple standard sizes, custom, and rolls
  • Water repellent and mildew resistant (Pyrosnuff treatment)
  • Great resistance to adverse environments

canvas-welding-curtains-by-akon-newest

How to Measure

Width

  • Measure the distance that you are trying to cover.
    • Add 5% to that dimension and input that into the width field of this form.
    • The extra 5% gives you proper drape for your curtain.

Height

  • Measure the distance from the floor to the mounting point.
    • Take that dimension and subtract 3 inches and input it into the height field of this form.
      • We subtract those 3" to account for the hardware to keep your curtain off of the floor.
      • If you are not using hardware then no need to subtract the 3"
      • If you want the floor sweep option, also subtract the 3". This will allow the floor sweep to lay slightly on the floor while the main curtain is just off of the floor.



Need More Help? Watch This




Common Questions


What is the spacing from the bottom of the track to the top of the curtain?
  • Standard curtains have approximately 3.75 to 1″ of a gap from the bottom of the track to the top of the curtain.
Spacing from Track

What are the dimensions of the track?

Can the track be cut to size as required on site?
  • Yes, the track is made to be field cut on site using a hack saw or sawzall.
How much width does the radius corner add to the length?
  • A radius corner has a 2' radius. So if you input 10' for curtain length you will end up with 12' when you attach the radius corner. If that is too long then simply cut the track onsite and the radius will still work.
How does the track go together?
  • The track is modular in design and will arrive in pieces that have a simple bolt together design.
How close together do I need the track supports?
  • The track should be supported approximately every 5' with a track support. The farther apart the track supports, the greater the deflection. If you have a relatively light weight curtain then you could space the supports out to about 8' apart. You will receive enough track supports with your order to achieve this 5' spacing.
Can I simply drill straight through the track and into the ceiling / structure?
  • Yes. This is called a flush mount install and is very common. Simply drill through the middle of the track and use a small wood screw, bolt, Tek screw...ect into your structure. Space the holes about every 3-5'.
How hard is it to install the industrial welding curtain track?
  • It is very easy. All of the components simply fit into each other and connect with set screws. The installation is very intuitive. If you have any difficulty simply call or email us and we will walk you through the process.
Will the track rust? Can it be used in wet environments?
  • The track is Hot-dip galvanizing (HDG) which is often used to protect steel from corrosion in some of the harshest environments imaginable, yet it provides maintenance-free longevity for decades. The corrosion resistance of hot-dip galvanizing varies according to its surroundings but generally corrodes at a rate of 1/30 of bare steel in the same environment.
Benefits

Key Benefits

  • Less expensive than rigid walls
  • Can be taken down quickly when not needed
  • Can be re-purused in other areas
  • Ability to purchase more curtains and attach to existing curtains
  • Divide welding cells quickly
  • Canvas welding curtains improve worker safety
  • Canvas is hot works approved
  • Quick to roll out of way when not in use
  • Contain air migration, odors, dust and weld slag
  • Lifetime warranty on all hardware and 5 year warranty on curtains

Many Layout Options

AKON can supply just about any canvas welding curtain layout you can think of. Below are some common styles. They can be single sided, double-sided, triple sided, four-sided or multiple straights to create complete enclosures. You simply inform AKON about your desired design and we will have it fabricated exactly as you need it. For customized layouts, sketch your design and upload it using our online RFQ form. See button below.

Ordering

Lead Time

  • Ships in 7-10 work days
  • Ships UPS or FedEx. You can also specify your shipping account

Warranty

  • Curtains - 5 year warranty on manufacturing defects
  • Hardware - Lifetime warranty on manufacturing defects
custom-quote-icon

Related Products

welding curtain walls

Welding Curtain Walls

welding strip curtains

Welding Strip Curtains

welding booth curtains

Welding Booth Curtains

welding curtain roll material

Welding Curtain Rolls

welding screens portable

Welding Screens

roll up retractable welding screens

Roll Up Welding Screens

canvas welding curtains

Canvas Hot Works Curtains

View All
Welding Curtains

Get In Touch!

989-414-1209

Email Support

Corporate Headquarters
Fernandina Beach, FL

Testimonials

"AKON had the quality that was lacking with our previous industrial curtain supplier. We run a fortune 500 company that relies on zero downtime. The AKON industrial curtain system just lasts longer and is made of better materials. I informed purchasing that if its not from AKON, then we don't want it!" - Fred Dixon

"The AKON wash bay curtains look great! No one was as helpful or as knowledgeable as your staff and that was a big deciding factor for us. When the wash bay curtains arrived the installation was flawless. We now have a wash bay curtain that we can be proud of and that will last for many years." - Jackie McGarb

"THE BEST!!! Hands Down!!. The curtains have stronger grommets and the vinyl is the best quality that we have seen. The service is also top notch and we have answers to our questions instantly. You can tell this is a well run company and they have taken care of all the projects that we have thrown at them." - Mike Richards

About Us

AKON Curtains is a global supplier of industrial curtains and warehouse separation dividers. Our staff has over 100 years of combined knowledge to make your industrial curtain project a success. LEARN MORE ABOUT US

Satisfied Customers

Product Links

Industrial Curtains

General Use Curtains

Warehouse Curtains

Warehouse Divider Curtains
Insulated Warehouse Curtains
Warehouse Strip Curtains
Warehouse Replacement Strips

Wash | Paint Curtains

Paint and Spray Booth Curtains
Portable Wash Down Screens
Prep Station Curtains
Industrial Wash Bay Curtains
USDA Wash Down Curtains
Decontamination Curtains

Welding Curtains

Vinyl – Welding Curtains
Vinyl – Curtain Booths
Vinyl – Portable Welding Screens
Strip – Welding Curtains
Strip – Curtain Booths
Strip – Curtain Rolls
Canvas – Welding Curtains
Canvas – Portable Welding Screens
Canvas – Curtain Rolls
Freestanding – Curtain Booths
Retractable – CS-500
Retractable – SB-5000
Retractable – SB-9000
Retractable – SB-10000
Retractable – SB-11000

Garage Divider Curtains

Standard Garage Curtains
Insulated Garage Curtains
Strip Door Garage Curtains
Wood Working Curtains

Free Standing Curtains

Free Standing Curtains
Free Standing Strip Curtains

Product Links

PVC Strip Curtains

Strip Curtain Kits
Welding Strip Curtains
PVC Strip Bulk Rolls
Free Standing Strip Curtains
Accordion Strip Doors
Sliding Strip Curtains and Doors
Stand Off Strip Curtain
Exhaust Hood Strip Curtains
High Temperature Strip Curtains
Anti-Static Strip Curtains
USDA Strip Curtain Wall
Cooler and Freezer Strip Doors

Specialty Curtains

Heat Resistant Curtains
Clean Room Curtains
Woodworking Curtains
Photography Curtains
Blackout Curtains
ESD – Antistatic Curtains
Chemical Splash Curtain

Outdoor Curtains

Residential Curtains
Industrial Curtains
Commercial Curtains

Insulated Curtains

Insulated Curtain Walls
Warehouse Insulated Curtains
Roll-Up Dock Door Curtains
Outdoor Insulated Curtains
Insulated Curtain Doors And Covers

Industrial Curtain Hardware

Industrial Curtain Track
Curtain Hangers
Strip Door Hardware

Laboratory Curtains

Industrial Blackout Curtains
Laser Barrier Curtains
ESD Anti-Static Curtains
RF / EMI blocking curtains

Resources

Hardware

Hardware Styles
Hardware Dimensions
Common Hardware Questions

Features

Door Options
Color Options
Optional Add-Ons
Material Spec Sheets
Curtain Weights
Strip Curtain Weights

Measuring

Hire an Installer or DIY
Hardware Dimensions
Taking Measurement For Curtains

Installation

Installation Directions
Hire an Installer or DIY
Cutting & Sealing a Curtain

Media

Photo Gallery

Company

Home

Contact Us
About Us
Rapid Quote
Order Your Quote
Track Your Order
Terms
Privacy Statement
Mission Statement
Blog

Visit Our Shop
