Curtain Track | Mounts
Ceiling Mounts
Mounts directly to the ceiling. The track then allows for the curtain to roll side to side on rollers.
Side-to-side movement: YES
Wall Mounts
Mounts directly to the face of a wall or vertical surface. The track then allows for the curtain to roll side to side on rollers.
Side-to-side movement: YES
Chain or Cable Mounts
Use a chain or cable to drop down from high above to suspend the curtain. The track then allows for the curtain to roll side to side on rollers.
Side-to-side movement: YES
Threaded Rod Mounts
Use a threaded rod to drop down from high above to suspend the curtain. The track then allows for the curtain to roll side to side on rollers.
Side-to-side movement: YES
I-Beam Mounts
When connecting to a truss, I-Beam or any other horizontal steel support, this style of mount works best. Once connected, you simply tighten down the set screw.
Side-to-side movement: YES

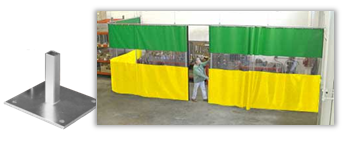

Free-Standing
Vertical uprights with base plates hold up the curtains. The curtains can be then fixed in place or rolling side-to-side on the curtain track. Note this is for curtains of 14′ in height or less.
Side-to-side movement: YES
Static Mount Hardware
Aluminum Angle
Aluminum angle and Tek screws hold the curtain up. The angle is clamped to the joists or anchored into the roof deck. Then self taping Tek screws are screwed into the angle through the curtain grommets with a washer to pinch the curtain to the angle.
Side-to-side movement: NO

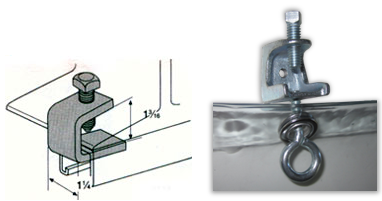

I-Beam Clamps
The I-Beam clamps allows for mounting to any flange such as joists, purlins, and of course I-Beams. The eye hook then goes through the grommets and into the bottom of the clamp.
Side-to-side movement: NO
Mounting Ideas (Not Supplied by AKON)
Tension Cable
You can hang your curtain using aircraft cable, S-hooks, and cable turnbuckles to tighten the cable. The S-hooks go through the curtain grommets. Not supplied by AKON but readily available from most hardware stores and online stores.
Side-to-side movement: YES
Magnetic Hooks
Magnetic Curtain Hangers can support 65lbs for each hook. They are a versatile option for hanging curtains that don't require any drilling. They also allow you to quickly take them down when not needed. You would only need a few of these to support a long stretch of curtain. Not supplied by AKON but readily available from most hardware stores and online stores.
Side-to-side movement: NO
