Home / Industrial Curtains / Heat Shield Curtains
heat shield curtains
Industrial-heat-shield-curtain

Heat Shield Curtains

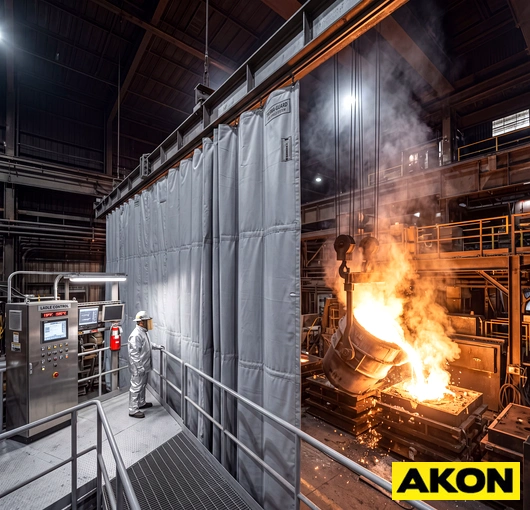

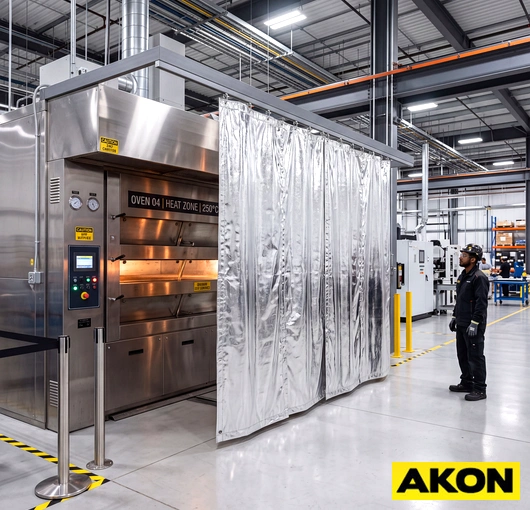

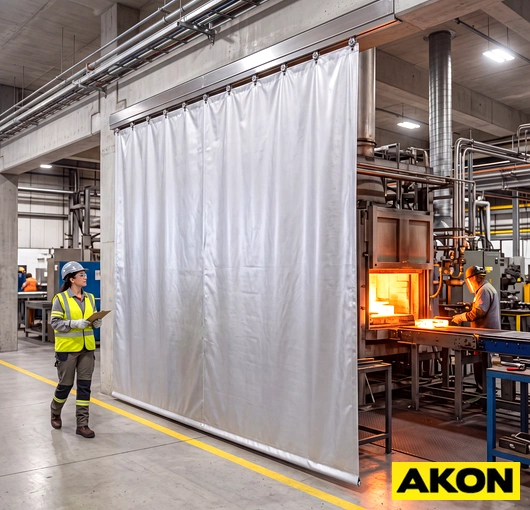

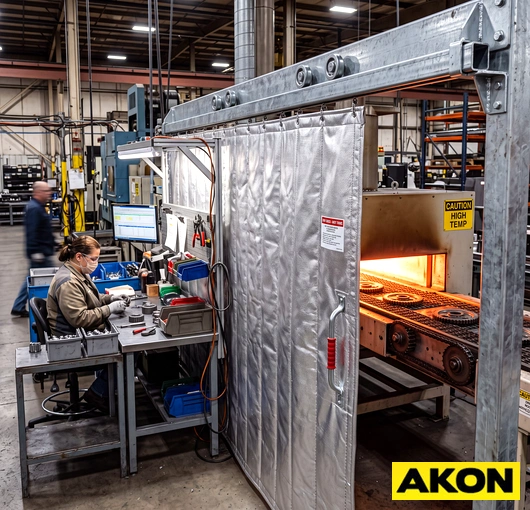

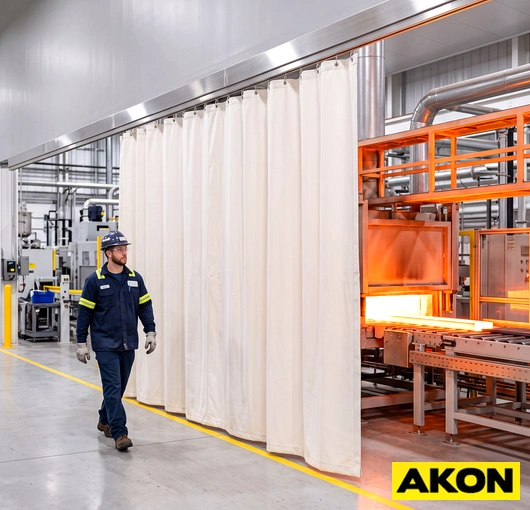

AKON heat curtains are used to protect, isolate, and reflect extreme heat sources. Our heat barrier curtains are ideal for creating isolated spaces to shield workers and products from extreme heat exposure commonly found near ovens. We offer a full range of industrial heat resistant curtains which are used to isolate heat producing machinery and processes. These heat resistant curtains improve production efficiency and increase safety by containing molten splash and sparks. You can choose from the standard sizes shown below, or you can use our custom quote form and have one of our experts pick the right material for your exact application. custom-quote-icon

Build Your Curtain Below

  • Step 1 - Choose Your Layout

  • Step 2 - Enter Curtain Dimensions

  • Side A
  • Width
  • Height
  • Please enter a number greater than or equal to 60.
  • Please enter a number greater than or equal to 60.
  • inches
  • Please enter a number greater than or equal to 60.
  • Please enter a number greater than or equal to 60.
  • inches
  • Minimum: 60"
  • Minimum: 60"
  • Side B
  • Width
  • Height
  • Please enter a number greater than or equal to 60.
  • Please enter a number greater than or equal to 60.
  • inches
  • Please enter a number greater than or equal to 60.
    for 2-sided
  • Please enter a number greater than or equal to 60.
    for 2-sided
  • inches
  • Minimum: 60"
  • Minimum: 60"
  • Side C
  • Width
  • Height
  • Please enter a number greater than or equal to 60.
    for 3-sided
  • Please enter a number greater than or equal to 60.
    for 3-sided
  • inches
  • Please enter a number greater than or equal to 60.
    for 3-sided
  • Please enter a number greater than or equal to 60.
    for 3-sided
  • inches
  • Minimum: 60"
  • Minimum: 60"
  • Side D
  • Width
  • Height
  • Please enter a number greater than or equal to 60.
    for 4-sided and multiple straights
  • Please enter a number greater than or equal to 60.
    for 4-sided and multiple straights
  • inches
  • Please enter a number greater than or equal to 60.
    for 4-sided and multiple straights
  • Please enter a number greater than or equal to 60.
    for 4-sided and multiple straights
  • inches
  • Minimum: 60"
  • Minimum: 60"
  • HOW TO MEASURE

  • Step 3 - Choose Curtain Material

  • heat-curtain-shield

    Model: CDH-1000

    • Curtain Color: Yellow
    • Material: Acrylic Coated Fiberglass - 24 oz. / .035" thick
    • Temperature Rating: 1000º F
    • Ideal For: Sparks, Spatter and is Abrasion Resistant
    • Insulated: No
    • Reflective: No
    • Grommets: Every 12" - Located at the top of the curtain
    • Note: Material is flexible and ideal for curtain track which allows the curtain to be pushed open
    • Price: $
  • CDH-2000

    Model: CDH-2000

    • Curtain Color: Gray on both sides
    • Material: Coated fibreglass
    • Temperature Rating: 500º F continuous and 2000º F intermittent
    • Ideal For: Sparks, Spatter and is Abrasion Resistant
    • Insulated: No
    • Reflective: No
    • Grommets: Every 12" - Located at the top of the curtain
    • Note: Material is flexible and ideal for curtain track which allows the curtain to be pushed open
    • Price: $$
  • CDH-3000

    Model: CDH-3000

    • Curtain Color: Gray on one back side and reflective on the front
    • Material: Coated fibreglass / aluminized kevlar - .100" thick
    • Temperature Rating: 500º F continuous and 2000º F intermittent
    • Ideal For: Sparks, Spatter and is Abrasion Resistant
    • Insulated: No
    • Reflective: Yes
    • Grommets: Every 12" - Located at the top of the curtain
    • Note: Material is flexible and ideal for curtain track which allows the curtain to be pushed open. Reflects heat back to the source
    • Price: $$$
  • CDH-4000

    Model: CDH-4000

    • Curtain Color: Gray on one back side and reflective on the front
    • Material: Coated fibreglass / aluminized kevlar - .250" thick
    • Temperature Rating: 2000º F continuous and 3000º F intermittent
    • Ideal For: Sparks, Spatter and is Abrasion Resistant
    • Insulated: Yes
    • Reflective: Yes
    • Grommets: Every 12" - Located at the top of the curtain
    • Note: Ideal for static position applications. Reflects heat back to the source and provides insulating value
    • Price: $$$$
  • CDH-5000

    Model: CDH-5000

    • Curtain Color: Gray on both sides
    • Material: Coated fibreglass both sides - .250" thick
    • Temperature Rating: 500º F continuous and 2000º F intermittent
    • Ideal For: Sparks, Spatter and is Abrasion Resistant
    • Insulated: Yes
    • Reflective: No
    • Grommets: Every 12" - Located at the top of the curtain
    • Note: Ideal for static position applications. Insulated to maintain temperature zones.
    • Price: $$$
  • Step 4 - Choose Hardware (Optional)

  • this is for hardware for side to side movement
  • this is for hardware for side to side movement and 2-sided
  • this is for hardware for side to side movement and 3-sided
  • this is for hardware for side to side movement and 4-sided
  • this is for hardware for static position
  • Step 5 - Curtain Features (Optional)

  • Price: $0.00 Quantity:
  • Price: $0.00 Quantity:
    MS
  • Price: $1.82 Quantity:
  • Price: $1.82 Quantity:
  • Price: $0.00 Quantity:
  • Price: $0.00 Quantity:
  • Price: $0.00 Quantity:
  • Price: $0.00 Quantity:
  • Price: $0.00 Quantity:
  • Special Request

SKU: heatcurtains8x6silvergraygrommetsattop Categories: Industrial Curtains, High Heat Tag: High Heat
  • Description

Description

Ceiling Corner Connector 90°
Hardware How to Measure Benefits Ordering
Hardware

Rolling Hardware

  • 16 gauge galvanized steel tracks
  • Steel roller hooks for easy opening
  • 6 mounting styles to connect to various structures
  • Free standing hardware for up to 20' in height

Static Hardware

  • Aluminum angle - Use with self tapping Tek screws
  • I-beam clamps - Clamps onto the flange of beams, joists and purlins
How to Measure

Width

  • Measure the distance that you are trying to cover.
    • Add 5% to that dimension and input it into the width field of this form.
    • The extra 5% gives you proper drape for your curtain.

Height

  • Measure the distance from the floor to the mounting point.
    • Take that dimension and subtract 3 inches and input it into the height field of this form.
      • We subtract those 3" to account for the hardware to keep your curtain off of the floor.
      • If you are not using hardware then no need to subtract the 3"
      • If you want the floor sweep option, also subtract the 3". This will allow the floor sweep to lay slightly on the floor while the main curtain is just off of the floor.



Need More Help? Watch This




Common Questions


What is the spacing from the bottom of the track to the top of the curtain?
  • Standard curtains have approximately 3.75 to 1″ of a gap from the bottom of the track to the top of the curtain.
Spacing from Track

What are the dimensions of the track?

Can the track be cut to size as required on site?
  • Yes, the track is made to be field cut on site using a hack saw or sawzall.
How much width does the radius corner add to the length?
  • A radius corner has a 2' radius. So if you input 10' for curtain length you will end up with 12' when you attach the radius corner. If that is too long then simply cut the track onsite and the radius will still work.
How does the track go together?
  • The track is modular in design and will arrive in pieces that have a simple bolt together design.
How close together do I need the track supports?
  • The track should be supported approximately every 5' with a track support. The farther apart the track supports, the greater the deflection. If you have a relatively light weight curtain then you could space the supports out to about 8' apart. You will receive enough track supports with your order to achieve this 5' spacing.
Can I simply drill straight through the track and into the ceiling / structure?
  • Yes. This is called a flush mount install and is very common. Simply drill through the middle of the track and use a small wood screw, bolt, Tek screw...ect into your structure. Space the holes about every 3-5'.
How hard is it to install the industrial curtain track?
  • It is very easy. All of the components simply fit into each other and connect with set screws. The installation is very intuitive. If you have any difficulty simply call or email us and we will walk you through the process.
Will the track rust? Can it be used in wet environments?
  • The track is Hot-dip galvanizing (HDG) which is often used to protect steel from corrosion in some of the harshest environments imaginable, yet it provides maintenance-free longevity for decades. The corrosion resistance of hot-dip galvanizing varies according to its surroundings but generally corrodes at a rate of 1/30 of bare steel in the same environment.
Benefits

Key Benefits

  • Less expensive than rigid walls
  • Can be taken down quickly when not needed
  • Can be re-purposed in other areas
  • Ability to purchase more curtains and attach to existing curtains
  • Divide work areas quickly
  • Industrial curtains improve worker safety
  • Quick to roll out of way when not in use
  • Easy to clean with slick surface of Vinyl
  • Contain air migration, odors, dust, over-spray
  • Lifetime warranty on all hardware and 5 year warranty on curtains

Many Layout Options

AKON can supply just about any layout you can think of. Below are some common styles. They can be single sided, double-sided, triple sided, four-sided or multiple straights to create complete enclosures. You simply inform AKON about your desired design and we will have it fabricated exactly as you need it. For customized layouts, sketch your design and upload it using our online RFQ form. See button below.

Ordering

Lead Time

  • Ships in 7-10 work days
  • Ships UPS or FedEx. You can also specify your shipping account

Warranty

  • Curtains - 5 year warranty on manufacturing defects
  • Hardware - Lifetime warranty on manufacturing defects
custom-quote-icon

Get In Touch!

989-414-1209

Email Support

Corporate Headquarters
Fernandina Beach, FL

Testimonials

"AKON had the quality that was lacking with our previous industrial curtain supplier. We run a fortune 500 company that relies on zero downtime. The AKON industrial curtain system just lasts longer and is made of better materials. I informed purchasing that if its not from AKON, then we don't want it!" - Fred Dixon

"The AKON wash bay curtains look great! No one was as helpful or as knowledgeable as your staff and that was a big deciding factor for us. When the wash bay curtains arrived the installation was flawless. We now have a wash bay curtain that we can be proud of and that will last for many years." - Jackie McGarb

"THE BEST!!! Hands Down!!. The curtains have stronger grommets and the vinyl is the best quality that we have seen. The service is also top notch and we have answers to our questions instantly. You can tell this is a well run company and they have taken care of all the projects that we have thrown at them." - Mike Richards

About Us

AKON Curtain and Divider is a global supplier of industrial curtains and warehouse separation dividers. Our staff has over a 100 years of combined knowledge to make your industrial curtain project a success. LEARN MORE ABOUT US

Satisfied Customers

Product Links

Industrial Curtains

General Use Curtains

Warehouse Curtains

Warehouse Divider Curtains
Insulated Warehouse Curtains
Warehouse Strip Curtains
Warehouse Replacement Strips

Wash | Paint Curtains

Paint and Spray Booth Curtains
Paint and Sanding Station
Industrial Wash Bay Curtains
USDA Wash Down Curtains
Portable USDA Wash Screens
Decontamination Curtains

Welding Curtains

Vinyl – Welding Curtains
Vinyl – Curtain Booths
Vinyl – Portable Welding Screens
Strip – Welding Curtains
Strip – Curtain Booths
Strip – Curtain Rolls
Canvas – Welding Curtains
Canvas – Portable Welding Screens
Canvas – Curtain Rolls
Canvas – Weld Blankets
Freestanding – Curtain Booths
Retractable – CS-500
Retractable – SB-5000
Retractable – SB-9000
Retractable – SB-10000
Retractable – SB-11000

Garage Divider Curtains

Standard Garage Curtains
Insulated Garage Curtains
Strip Door Garage Curtains
Wood Working Curtains

Product Links

PVC Strip Curtains

Strip Curtain Kits
Welding Strip Curtains
PVC Strip Bulk Rolls
Free Standing Strip Curtains
Accordion Strip Doors
Sliding Strip Curtains and Doors
Stand Off Strip Curtain
Exhaust Hood Strip Curtains
High Temperature Strip Curtains
Anti-Static Strip Curtains
USDA Strip Curtain Wall
Cooler and Freezer Strip Doors

Specialty Curtains

Heat Resistant Curtains
Clean Room Curtains
Woodworking Curtains
Photography Curtains
Blackout Curtains
ESD – Antistatic Curtains
Chemical Splash Curtain

Outdoor Curtains

Standard Outdoor Curtains
Windproof Outdoor Curtains
Insulated Outdoor Curtains

Insulated Curtains

Insulated Curtain Walls
Warehouse Insulated Curtains
Roll Up Dock Door Curtains
Outdoor Insulated Curtains

Free Standing Curtains

Standard Free Standing Curtains
Free Standing Strip Curtains

Industrial Curtain Track

Industrial Curtain Track

Resources

Hardware

Hardware Styles
Hardware Dimensions
Common Hardware Questions

Features

Door Options
Color Options
Optional Features
Material Spec Sheets
Curtain Weights
Curtain Weight Estimator

Measuring

Hire an Installer or DIY
Hardware Dimensions
Taking Measurement For Curtains

Installation

Rolling Curtain Track
Free Standing Curtains
Strip Curtain Doors
Portable Welding Screen
Hire an Installer or DIY
Cutting & Sealing a Curtain

Media

Photo Gallery

Company

Home

About Us
Contact Us
Rapid Quote
Order Your Quote
Terms
Privacy Statement
Mission Statement
Blog

Visit Our Shop

© Copyright 2009-2021 · AKON Curtain and Divider
