Industrial Divider Walls

Warehouse Divider Walls that can separate work areas

OVERVIEW

At Akon, we specialize in supplying facilities with industrial divider walls which control temperatures, odors, fumes, and provides dust containment. This separation might be used to protect one area from flying debris, or it might be used to isolate cold air from warm air to reduce the utility bills for the company.Whatever the reason, our curtains will permit you to exploit all of your obtainable space more resourcefully while increasing employee comfort, satisfaction, and efficiency.

Warehouse Partition Wall Systems

industrial divider walls to separate spaces

Control Temperatures and Save Money

With the use of our industrial divider walls you can effortlessly control temperature, loud noises, visual distractions, and even flying debris. You will also find that almost all of our dividers are equipped with rollers and tracks which will allow your workers to effortlessly slide the curtains based on their access needs.

When you call Akon you will be greeted with a knowledgeable staff which can guide you through the requirements of your application. This helpful guidance will ensure that you are supplied not only with the right industrial divider wall, but with a product that will last years rather than months.

Made Tough To Endure

industrial divider wall

Divider Wall Construction

Our divider walls are constructed to endure years of rigorous industrial usage while performing as well as the day that they are installed. There are also many colors and configurations you can choose from based on your specific needs. These curtains are made from the same material as you find with trucking tarps used to cover loads on semi-trailers. This material is slick, strong, tear resistant and made for many years of use.

How to Divide Warehouse Spaces

divider walls for industrial use

How To Divide Space in Your Warehouse

As a supplier of industrial divider walls, we know that with our shrinking economy, factories and major manufacturing plants are finding that their output is drastically decreasing. This decreasing output results and floor space which is no longer used for production and becomes a drain on the company's resources. This is where a industrial divider walls can be utilized. With the use and installation of these curtains, a factory can section off used floor space from unused floor space. Essentially dividing up their floor into zones. The zones that are no longer required for day-to-day operations can be sealed off and essentially shut down.

The benefit of dividing unused floorspace from used floorspace is to realize a substantial savings in heating and cooling costs. There is no reason that a company should have to heat or cool large areas which are no longer being used to produce goods or services. This is especially important as energy costs continue to rise and become a larger portion of a company's expenses. With the installation of a warehouse partition wall system, a large facility can cut their heating bill almost in half. This results in an enormous amount of energy cost savings every month.

Warehouse partition wall systems can also be installed quickly and at a fraction of the cost of a fixed permanent walls. They can also be modified quickly as changes in production take place. For instance, they can have strip doors, see-through vision panels, additional curtain panels, and forklift access doors added quickly after installation. This type of flexibility simply is not possible with fixed partition walls. In addition, fixed walls are expensive to install, and often times require major renovation and downtime to implement.

Material Options

blackout-vinyl-curtains

Opaque Vinyl

Industrial grade 18oz opaque vinyl ideal for moderate temperature control and blocking line of sight. $$

clear

Clear Vinyl

Industrial grade 30mil clear vinyl ideal for moderate temperature control and allowing a line of sight. $$

insulated

Insulated Vinyl

Industrial R3 1/2" thick material with 18oz vinyl skins ideal for heavy temperature control and blocking the line of sight. $$

Complete Containment Solution

Photo Gallery

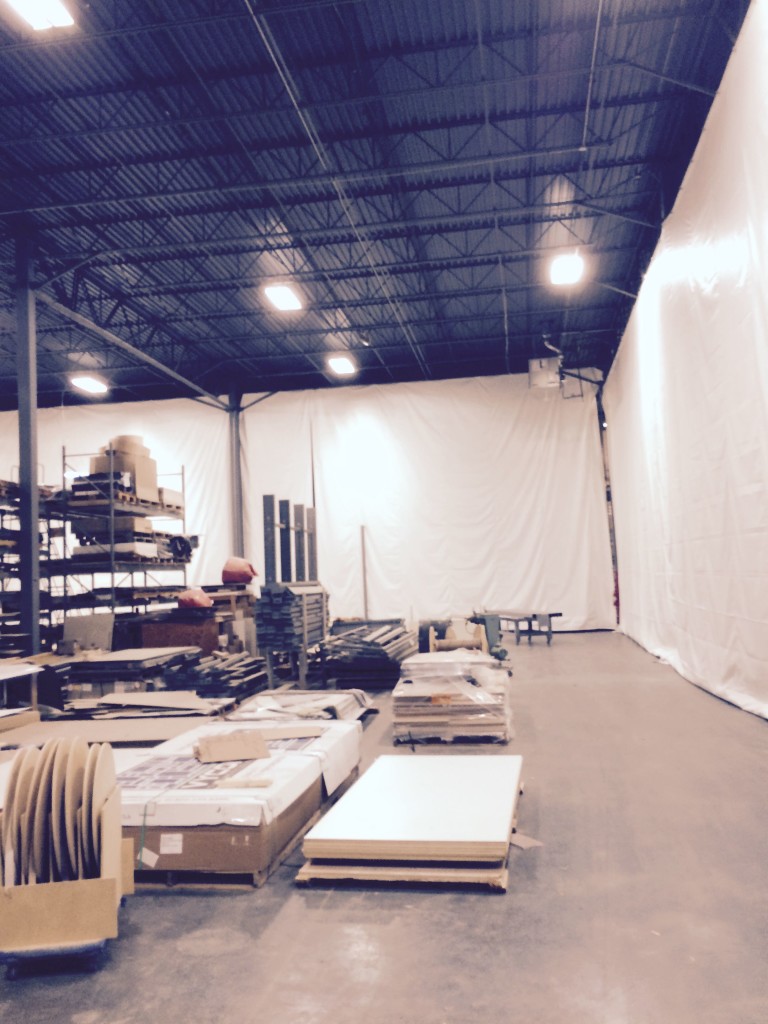

industrial wall divider
warehouse curtain divider

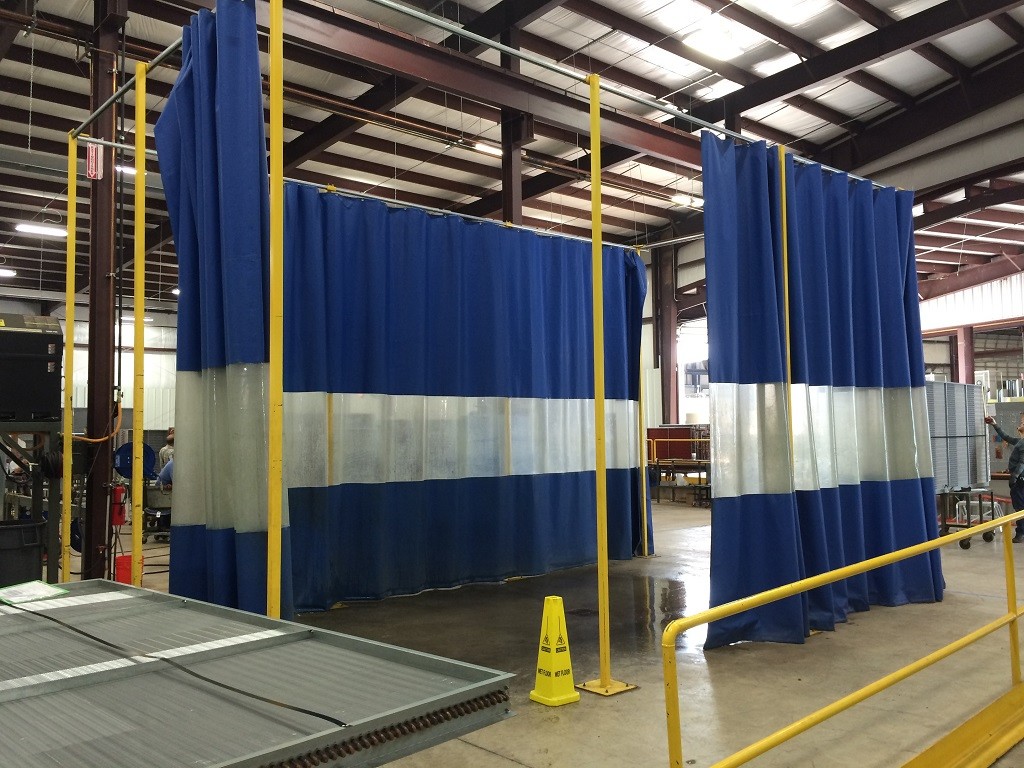

shop divider curtain

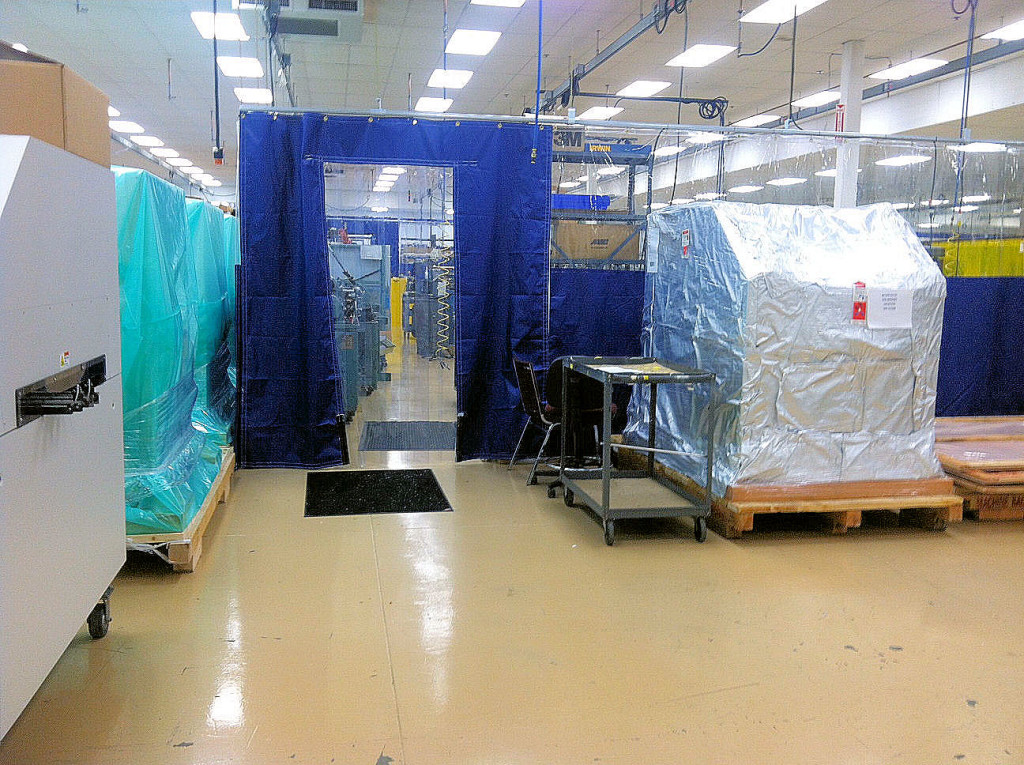

curtain wall dividers
curtains wall dividers
Industrial Curtain Dividers
PVC curtain divider
Hardware Curtains Colors Accessories Benefits How to Measure
Hardware

Rolling Hardware

  • 16 gauge galvanized steel tracks
  • Nylon roller hooks for easy opening
  • 6 mounting styles to connect to various structures
  • Free standing hardware for up to 20' in height

Static Hardware

  • Aluminum angle - Use with self tapping Tek screws
  • I-beam clamps - Clamps onto the flange of beams, joists and purlins
Curtains

Opaque Curtains - 13oz, 18oz, 22oz

  • Vinyl coated polyester reinforced with scrim
  • NFPA fire retardant, CFM fire retardant
  • 18oz and 22oz are outdoor rated
  • Finished edges for clean crisp appearance
  • Double hems used where needed for longevity
  • Temperatures range -10° F to 160° F
  • All colors are the same price
  • 13 oz = .016″ thick, 1.44 oz. per square foot
  • 18 oz = .020″ thick, 2.0 oz. per square foot
  • 22 oz = .024″ thick, 2.44 oz. per square foot

vinyl-red-bg-white

Clear Curtains - 20mil and 40mil

  • Clear double polished PVC
  • NFPA fire retardant, CFM fire retardant
  • Outdoor rated
  • Finished edges for clean crisp apperance
  • Double hems used where needed for longevity
  • Temperatures range 10° F to 160° F
  • 20 mil = 20mil thick, 1.98 oz. per square foot
  • 40 mil = 40mil thick, 3.95 oz. per square foot

Tinted Curtains - 14mil and 40mil

  • Ideal for welding applications
  • Blocks most UV radiation for welding
  • NFPA fire retardant, CFM fire retardant
  • 40mil is outdoor rated
  • Finished edges for clean crisp appearance
  • Double hems used where needed for longevity
  • Temperatures range 10° F to 160° F
  • 14 mil = 14mil thick, 1.44 oz. per square foot
  • 40 mil = 40mil thick, 3.95 oz. per square foot

vinyl-tint-bg-white

Colors

18oz Vinyl

color-options-18oz

14mil Vinyl

color-options-14mil

Accessories

Curtain Features



Clear Vision Panels

Vision panels can be added to allow for a clear line
of site through the curtain. Standard vision panels
are 54" in height but can be made to any size.



Curtain Valances

A valance is made from the same material as the
lower curtain. They are used to seal the opening
above the curtain. This is generally the space from
the roof deck to the bottom of the joist or purlin.
They can be rectangular or follow the slope of the roof.



Floor Sweeps

A floor sweep seals the open area between the
curtain and the floor. It attaches to the main
curtain by Velcro. They are 6″ tall and as wide
as the entire length of the curtain. These are
ideal for controlling dust, fumes, odors and
other undesirable elements. They can also be
replaced in the future should the friction from
the floor wear them out.



Anchor Straps

Velcro straps hold your curtain in place if wind
is present or a more secure curtain is required.
These anchors feature Velcro straps which loop
through a D-ring which is anchored into the
cement floor. Typically spaced every 4'.



Seal Velcro

Seal Velcro also known as adhesive Velcro sticks
onto your curtain and can be installed in the field.
Please note that this is not ideal for cold
temperature applications or high-frequency use.



Chain Weights

If you have a slight breeze or are power washing
near the curtain then we can add a galvanized
3/16" chain weight to the bottom of the curtain.



Connecting Curtains

Velcro

Velco is used to connect curtain sections
together to form larger curtain walls. The
velcro also serves as an access points for
larger curtains and makes them easier to
install.



Magnets

Seal magnets are an idea way to attach curtains
to each other or adjacent steel walls and beams.
Best utilized in dusty areas that would clog up
Velcro.



Entry Options

Sewn In Strip Doors

Strip doors that are sewn into the curtain are
ideal for light foot traffic. This allows for quick
movement of people into and out of the
industrial curtains.



Free Standing Strip Doors

For motorized traffic a free-standing steel frame
strip door is ideal. The steel frame takes the
stress off of the curtain wall ensuring longevity
and performance for motor traffic and high use.



Swinging Impact Doors

A free-standing industrial swinging door can
also be provided for access. Also known as
impact doors, these heavy duty doors can
take a lot of abuse from carts, fork lifts or
heavy foot traffic.



Roll Up Doors

Supported with a free-standing steel frame
the power roll up doors can be opened and
closed via remote from a fork lift. Door
styles and prices vary based on frequency
of opening and closing, speed requirements
and size.

Benefits

Key Benefits

  • Less expensive than rigid walls
  • Can be taken down quickly when not needed
  • Can be re-purposed in other areas
  • Ability to purchase more curtains and attach to existing curtains
  • Divide work areas quickly
  • Industrial curtains improve worker safety
  • Quick to roll out of way when not in use
  • Easy to clean with slick surface of Vinyl
  • Contain air migration, odors, dust, over-spray
  • Lifetime warranty on all hardware and 5 year warranty on curtains

Common Layouts

AKON can supply just about any layout you can think of. Below are some common styles. They can be single sided, double-sided, triple sided, four-sided or multiple straights to create complete enclosures. You simply inform AKON about your desired design and we will have it fabricated exactly as you need it. For customized layouts, sketch your design and upload it using our online RFQ form. See button below.

How to Measure

Width

  • Measure the distance that you are trying to cover
    • We will generally add 5% to this dimension to give your curtain proper drape.
    • When you receive your quote, the hardware width will be the actual width.

Height

  • Measure the distance from the floor to the mounting point
    • We will subtract 3" to account for the hardware to keep your curtain just off of the ground.
      • If you want the floor sweep option, we also subtract the 3". This will allow the floor sweep to lay slightly on the floor while the main curtain is just off of the floor.
      • If you have a sloped ceiling please provide us with the high point height and the low point height. We will assume it is a linear straight slope.



Need More Help? Watch This




Common Questions


What is the spacing from the bottom of the track to the top of the curtain?
  • Standard curtains have approximately 3.75 to 1″ of a gap from the bottom of the track to the top of the curtain.
Spacing from Track

What are the dimensions of the track?

Can the track be cut to size as required on site?
  • Yes, the track is made to be field cut on site using a hack saw or sawzall.
How much width does the radius corner add to the length?
  • A radius corner has a 2' radius. So if you input 10' for curtain length you will end up with 12' when you attach the radius corner. If that is too long then simply cut the track onsite and the radius will still work.
How does the track go together?
  • The track is modular in design and will arrive in pieces that have a simple bolt together design.
How close together do I need the track supports?
  • The track should be supported approximately every 5' with a track support. The farther apart the track supports, the greater the deflection. If you have a relatively short in height curtain then you could space the supports out a little farther. You will receive enough track supports with your order to achieve this 5' spacing.
Can I simply drill straight through the track and into the ceiling / structure?
  • Yes. This is called a flush mount install and is very common. Simply drill through the middle of the track and use a small wood screw, bolt, Tek screw...ect into your structure. Space the holes about every 3-5'.
How hard is it to install the industrial curtain track?
  • It is very easy. All of the components simply fit into each other and connect with set screws. The installation is very intuitive. If you have any difficulty simply call or email us and we will walk you through the process.
Will the track rust? Can it be used in wet environments?
  • The track is Hot-dip galvanizing (HDG) which is often used to protect steel from corrosion in some of the harshest environments imaginable, yet it provides maintenance-free longevity for decades. The corrosion resistance of hot-dip galvanizing varies according to its surroundings but generally corrodes at a rate of 1/30 of bare steel in the same environment.

Build Yours Online

Build Now

Filed Under: Uncategorized Tagged With: industrial curtain dividers, Insulated Curtain Enclosure, USDA FDA Grade Curtains, Warehouse Curtain Divider

Get In Touch!

989-414-1209

Email Support

Corporate Headquarters
Fernandina Beach, FL

Testimonials

"AKON had the quality that was lacking with our previous industrial curtain supplier. We run a fortune 500 company that relies on zero downtime. The AKON industrial curtain system just lasts longer and is made of better materials. I informed purchasing that if its not from AKON, then we don't want it!" - Fred Dixon

"The AKON wash bay curtains look great! No one was as helpful or as knowledgeable as your staff and that was a big deciding factor for us. When the wash bay curtains arrived the installation was flawless. We now have a wash bay curtain that we can be proud of and that will last for many years." - Jackie McGarb

"THE BEST!!! Hands Down!!. The curtains have stronger grommets and the vinyl is the best quality that we have seen. The service is also top notch and we have answers to our questions instantly. You can tell this is a well run company and they have taken care of all the projects that we have thrown at them." - Mike Richards

About Us

AKON Curtain and Divider is a global supplier of industrial curtains and warehouse separation dividers. Our staff has over a 100 years of combined knowledge to make your industrial curtain project a success. LEARN MORE ABOUT US

Satisfied Customers

Product Links

Industrial Curtains

General Use Curtains

Warehouse Curtains

Warehouse Divider Curtains
Insulated Warehouse Curtains
Warehouse Strip Curtains
Warehouse Replacement Strips

Wash | Paint Curtains

Paint and Spray Booth Curtains
Paint and Sanding Station
Industrial Wash Bay Curtains
USDA Wash Down Curtains
Portable USDA Wash Screens
Decontamination Curtains

Welding Curtains

Vinyl – Welding Curtains
Vinyl – Curtain Booths
Vinyl – Portable Welding Screens
Strip – Welding Curtains
Strip – Curtain Booths
Strip – Curtain Rolls
Canvas – Welding Curtains
Canvas – Portable Welding Screens
Canvas – Curtain Rolls
Canvas – Weld Blankets
Freestanding – Curtain Booths
Retractable – CS-500
Retractable – SB-5000
Retractable – SB-9000
Retractable – SB-10000
Retractable – SB-11000

Garage Divider Curtains

Standard Garage Curtains
Insulated Garage Curtains
Strip Door Garage Curtains
Wood Working Curtains

Product Links

PVC Strip Curtains

Strip Curtain Kits
Welding Strip Curtains
PVC Strip Bulk Rolls
Free Standing Strip Curtains
Accordion Strip Doors
Sliding Strip Curtains and Doors
Stand Off Strip Curtain
Exhaust Hood Strip Curtains
High Temperature Strip Curtains
Anti-Static Strip Curtains
USDA Strip Curtain Wall
Cooler and Freezer Strip Doors

Specialty Curtains

Heat Resistant Curtains
Clean Room Curtains
Woodworking Curtains
Photography Curtains
Blackout Curtains
ESD – Antistatic Curtains
Chemical Splash Curtain

Outdoor Curtains

Standard Outdoor Curtains
Windproof Outdoor Curtains
Insulated Outdoor Curtains

Insulated Curtains

Insulated Curtain Walls
Warehouse Insulated Curtains
Roll Up Dock Door Curtains
Outdoor Insulated Curtains

Free Standing Curtains

Standard Free Standing Curtains
Free Standing Strip Curtains

Industrial Curtain Track

Industrial Curtain Track

Resources

Hardware

Hardware Styles
Hardware Dimensions
Common Hardware Questions

Features

Door Options
Color Options
Optional Features
Material Spec Sheets
Curtain Weights
Curtain Weight Estimator

Measuring

Hire an Installer or DIY
Hardware Dimensions
Taking Measurement For Curtains

Installation

Rolling Curtain Track
Free Standing Curtains
Strip Curtain Doors
Portable Welding Screen
Hire an Installer or DIY
Cutting & Sealing a Curtain

Media

Photo Gallery

Company

Home

About Us
Contact Us
Rapid Quote
Order Your Quote
Terms
Privacy Statement
Mission Statement
Blog

Visit Our Shop

© Copyright 2009-2021 · AKON Curtain and Divider
