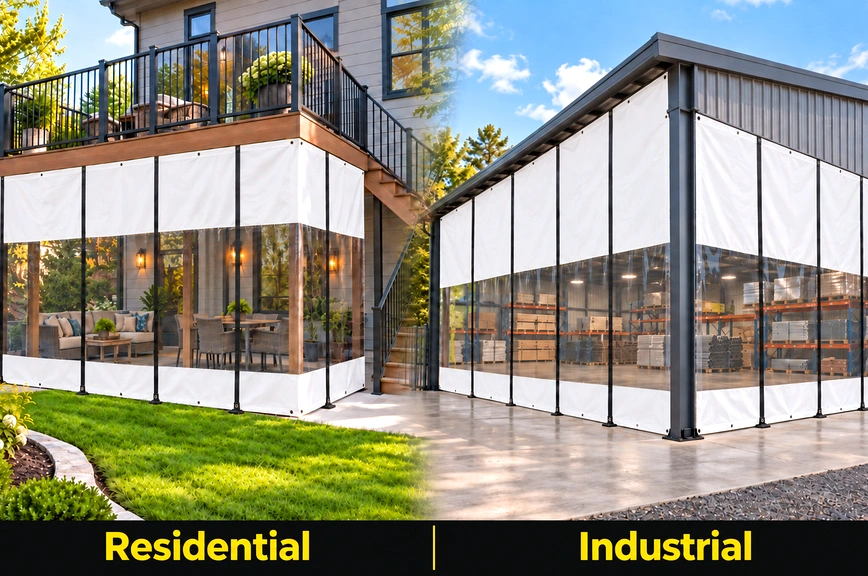

Super Duty Outdoor Curtains

Curtains

• Vinyl coated polyester reinforced with scrim
• NFPA fire retardant, CFM fire retardant
• 22oz are outdoor rated
• Finished edges for clean crisp appearance
• Double or triple hems used where needed for longevity
• Ideal for temperatures going as low as -10° F to 160° F
• All colors are the same price
• 22 oz = .024″ thick, 2.44 oz. per square foot



Colors

Curtain Features



Curtain Valances

A valance is made from the same material as the
lower curtain. They are used to seal the opening
above the curtain. This is generally the space from
the roof deck to the bottom of the joist or purlin.
They can be rectangular or follow the slope of the roof.



Floor Sweeps

A floor sweep seals the open area between the
curtain and the floor. It attaches to the main
curtain by Velcro. They are 6″ tall and as wide
as the entire length of the curtain. These are
ideal for controlling dust, fumes, odors and
other undesirable elements. They can also be
replaced in the future should the friction from
the floor wear them out.



Seal Velcro

Seal Velcro also known as adhesive Velcro sticks
onto your curtain and can be installed in the field.
Please note that this is not ideal for cold
temperature applications or high-frequency use.

Velcro

Velco is used to connect curtain sections
together to form larger curtain walls. The
velcro also serves as an access points for
larger curtains and makes them easier to
install.



Entry Options

Sewn In Strip Doors

Strip doors that are sewn into the curtain are
ideal for light foot traffic. This allows for quick
movement of people into and out of the
industrial curtains.



Free Standing Strip Doors

For motorized traffic a free-standing steel frame
strip door is ideal. The steel frame takes the
stress off of the curtain wall ensuring longevity
and performance for motor traffic and high use.



Swinging Impact Doors

A free-standing industrial swinging door can
also be provided for access. Also known as
impact doors, these heavy duty doors can
take a lot of abuse from carts, fork lifts or
heavy foot traffic.



Roll Up Doors

Supported with a free-standing steel frame
the power roll up doors can be opened and
closed via remote from a fork lift. Door
styles and prices vary based on frequency
of opening and closing, speed requirements
and size.

Key Benefits

• Less expensive than rigid walls
• Can be taken down quickly when not needed
• Can be re-purused in other areas
• Ability to purchase more curtains and attach to existing curtains
• Divide work areas quickly
• Super heavy duty outdoor curtains control temperatures
• Quick to roll out of way when not in use
• Easy to clean with slick surface of 22oz vinyl
• Contain air migration, odors, dust, overspray
• Lifetime warranty on all hardware and 1 year warranty on curtains

Common Layouts

AKON can supply just about any layout you super duty outdoor curtain can think of. Below are some common styles. They can be single sided, double-sided, triple sided, four-sided or multiple straights to create complete enclosures. You simply inform AKON about your desired design and we will have it fabricated exactly as you need it. For customized outdoor curtain layouts, sketch your design and upload it using our online RFQ form. See button below.

Width

• Measure the distance that you are trying to cover
  • We will generally add 5% to this dimension to give your curtain proper drape.
  • When you receive your quote, the hardware width will be the actual width.

Height

• Measure the distance from the floor to the mounting point
  • We will subtract 3" to account for the hardware to keep your curtain just off of the ground.
    • If you want the floor sweep option, we also subtract the 3". This will allow the floor sweep to lay slightly on the floor while the main curtain is just off of the floor.
    • If you have a sloped ceiling please provide us with the high point height and the low point height. We will assume it is a linear straight slope.



Need More Help? Watch This

---



Common Questions

---

• Standard curtains have approximately 3.75 to 1″ of a gap from the bottom of the track to the top of the curtain.

What are the dimensions of the track?

• Yes, the track is made to be field cut on site using a hack saw or sawzall.

• The track is modular in design and will arrive in pieces that have a simple bolt together design.

• The track should be supported approximately every 5' with a track support. The farther apart the track supports, the greater the deflection. If you have a relatively short in height curtain then you could space the supports out a little farther. You will receive enough track supports with your order to achieve this 5' spacing.

• Yes. This is called a flush mount install and is very common. Simply drill through the middle of the track and use a small wood screw, bolt, Tek screw...ect into your structure. Space the holes about every 3-5'.

• It is very easy. All of the components simply fit into each other and connect with set screws. The installation is very intuitive. If you have any difficulty simply call or email us and we will walk you through the process.

• The track is Hot-dip galvanizing (HDG) which is often used to protect steel from corrosion in some of the harshest environments imaginable, yet it provides maintenance-free longevity for decades. The corrosion resistance of hot-dip galvanizing varies according to its surroundings but generally corrodes at a rate of 1/30 of bare steel in the same environment.
